EFM303B - SUPER FAST SILICON RECTIFIER

Download the EFM303B datasheet PDF (EFM301B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for super fast silicon rectifier.

Description

Cathode Band 3EX V Y WW Year

Part No.

code (WW: 01~52) REEL TAPING SPECIFICATIONS FOR SURFACE MOUNT DEVICES-FLAT MELF (

Features

  • Glass passivated device.
  • Ideal for surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EFM301B_Rectron.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EFM303B
Manufacturer Rectron
File Size 187.34 KB
Description SUPER FAST SILICON RECTIFIER
Datasheet download datasheet EFM303B Datasheet

📁 Similar Datasheet

  • EFM303 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM301 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM302 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM304 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM305 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM306 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM308 - 3.0 AMP SUPER FAST RECTIFIER (WILLAS)
  • EFM32G200 - Microcontrollers (Silicon Laboratories)
  • EFM32G200F16 - Microcontrollers (Energy Micro)
  • EFM32G200F32 - Microcontrollers (Energy Micro)
Other Datasheets by Rectron
  • EFM303 - SUPER FAST SILICON RECTIFIER
  • EFM303L - SUPER FAST SILICON RECTIFIER
  • EFM301 - SUPER FAST SILICON RECTIFIER
  • EFM301B - SUPER FAST SILICON RECTIFIER
  • EFM301L - SUPER FAST SILICON RECTIFIER
  • EFM302 - SUPER FAST SILICON RECTIFIER
  • EFM302B - SUPER FAST SILICON RECTIFIER
  • EFM302L - SUPER FAST SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

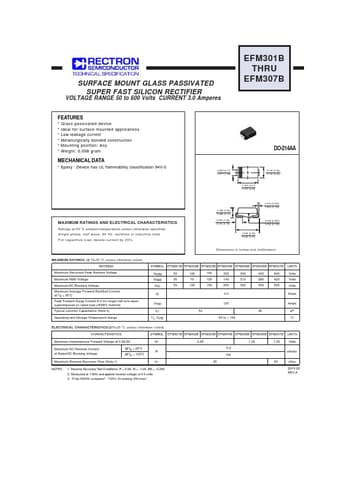

SURFACE MOUNT GLASS PASSIVATED SUPER FAST SILICON RECTIFIER VOLTAGE RANGE 50 to 600 Volts CURRENT 3.0 Amperes EFM301B THRU EFM307B FEATURES * Glass passivated device * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Mounting position: Any * Weight: 0.098 gram MECHANICAL DATA * Epoxy : Device has UL flammability classification 94V-0 DO-214AA 0.083 (2.11) 0.077 (1.96) 0.180 (4.57) 0.160 (4.06) 0.155 (3.94) 0.130 (3.30) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. 0.096 (2.44) 0.084 (2.13) 0.060 (1.52) 0.030 (0.76) 0.012 (0.305) 0.006 (0.152) 0.220 (5.59) 0.
