DTC114EUA - DIGITAL TRANSISTOR

Name: DTC114EUA
SKU: DTC114EUA-1145302

Rectron

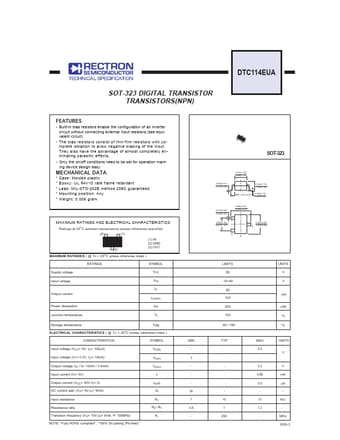

The DTC114EUA by Rectron is a DIGITAL TRANSISTOR. Below is the official datasheet preview.

Datasheet Details

Part number	DTC114EUA
Manufacturer	Rectron
File Size	443.43 KB
Description	DIGITAL TRANSISTOR
Datasheet	DTC114EUA-Rectron.pdf
Additional preview pages of the DTC114EUA datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation marking device design easy.
