FM360B - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Download the FM360B datasheet PDF (FM320B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount schottky barrier rectifier.

Features

  • Fast switching.
  • Low switching noise.
  • Low forward voltage drop.
  • High current capability.
  • High switching capability.
  • High reliability.
  • High surge capability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FM320B_RectronSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FM360B
Manufacturer Rectron Semiconductor
File Size 57.24 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet FM360B Datasheet

📁 Similar Datasheet

  • FM360 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Rectron)
  • FM360 - Silicon epitaxial planer type (Formosa MS)
  • FM360-A - Silicon epitaxial planer type (Formosa MS)
  • FM360-AS - 3A SMD SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • FM360-AS - Chip Schottky Barrier Rectifier (Formosa MS)
  • FM360-B - (FM3xxx-B) Chip Schottky Barrier Diodes (Formosa MS)
  • FM360-MT - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • FM3608 - Current type DC-DC booster (FUMAN ELECTRONICS)
  • FM360A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Rectron)
  • FM361 - Mass Flow Controllers and Flowmeters (ETC)
Other Datasheets by Rectron Semiconductor
  • FM360BF - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • FM301 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
  • FM302 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
  • FM303 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
  • FM304 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
  • FM305 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
  • FM306 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
  • FM307 - SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

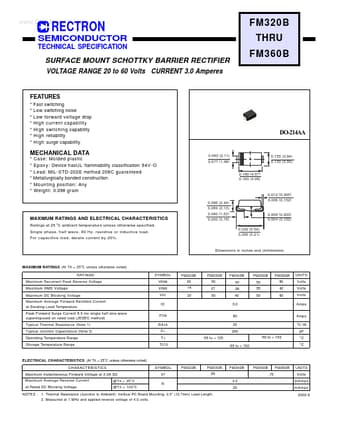

RECTRON www.DataSheet4U.com SEMICONDUCTOR TECHNICAL SPECIFICATION SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 60 Volts CURRENT 3.0 Amperes FM320B THRU FM360B FEATURES * Fast switching * Low switching noise * Low forward voltage drop * High current capability * High switching capability * High reliability * High surge capability MECHANICAL DATA * Case: Molded plastic * Epoxy: Device hasUL flammability classification 94V-O * Lead: MIL-STD-202E method 208C guaranteed * Metallurgically bonded construction * Mounting position: Any * Weight: 0.098 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
