RS20N90D - N-Channel MOSFET

The RS20N90D by Reasunos is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

RS20N90D N-Channel MOSFET by Reasunos - Datasheet Preview — Official preview page of the RS20N90D N-Channel MOSFET datasheet (Reasunos).

Datasheet Details

Part number	RS20N90D
Manufacturer	Reasunos
File Size	544.52 KB
Description	N-Channel MOSFET
Datasheet	RS20N90D-Reasunos.pdf

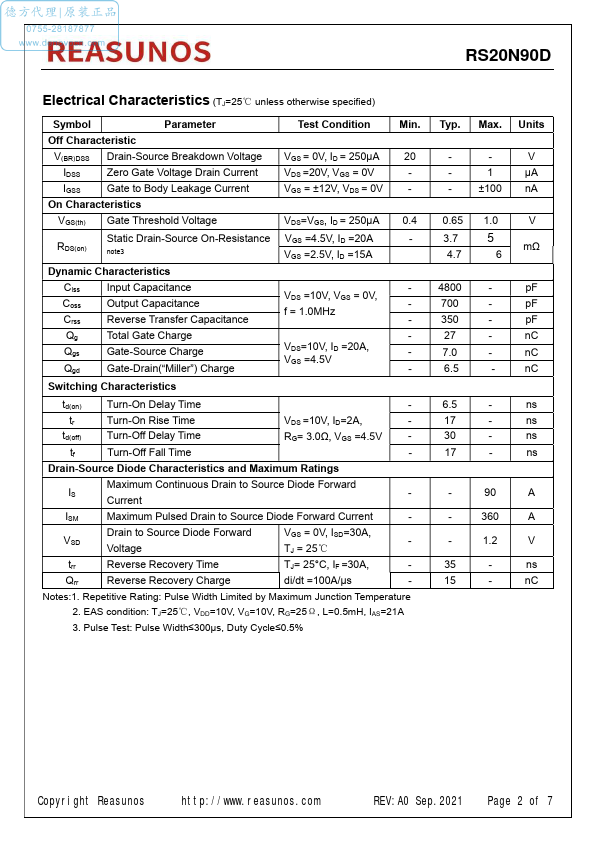

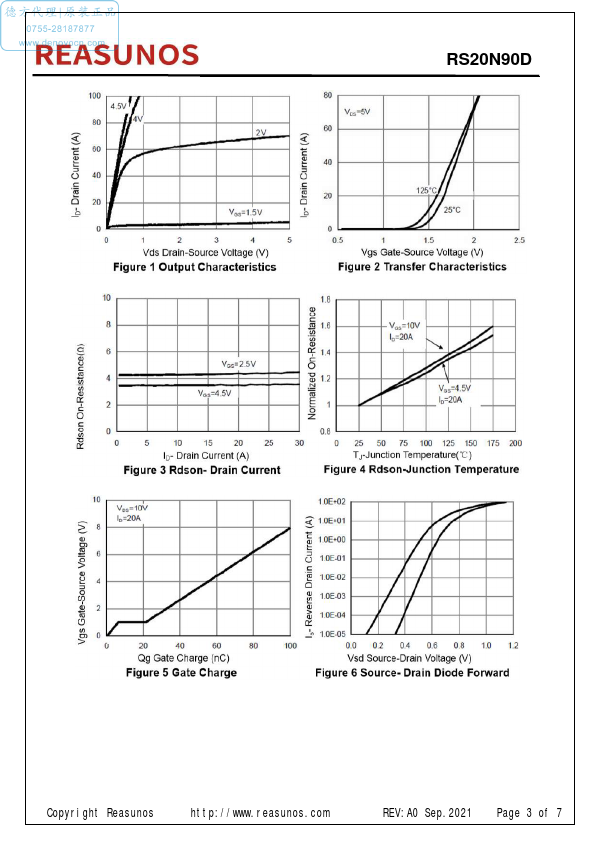

Additional preview pages of the RS20N90D datasheet.

RS20N90D Product details

Description

N-channel MOSFET

Features

20V, 90A RDS(ON) < 5.0mΩ @ VGS = 4.5V RDS(ON) < 6.0mΩ @ VGS = 2.5V.
Lead free and Green Device Available.
Excellent RDS(ON) and Low Gate Charge.
Lead free product is acquiredcc RS20N90D Lead Free Package and Finish.
