TMC1175A Video A/D Converter

Raytheon

TMC1175A Description

TMC1175A/TMC1275 Video A/D Converter 8 bit, 50 Msps Electronics Semiconductor Division .
The TMC1175A/1275 analog-to-digital (A/D) converter employs a two-step ﬂash architecture to convert analog signals into 8-bit digital words at sample.

TMC1175A Features

* 8-Bit resolution
* 50 Msps conversion rate
* Low power: 100mW at 20 Msps
* Integral track/hold
* Integral and differential linearity error 0.5 LSB
* Single or dual +5 Volt supplies
* Differential phase 0.5 degree
* Differential gain 1

TMC1175A Applications

* Video digitizing
* VGA and CCD digitizing
* LCD projection panels
* Image scanners
* Personal computer video boards
* Multimedia systems

📥 Download Datasheet

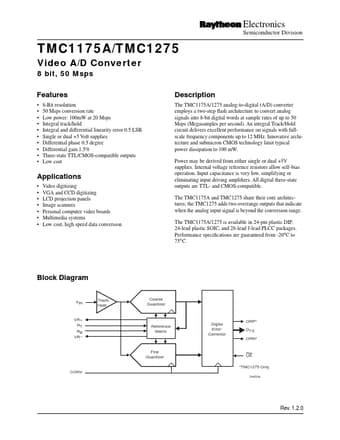

TMC1175A Datasheet Preview — Preview of TMC1175A PDF

Datasheet Details

Part number: TMC1175A
Manufacturer: Raytheon
File Size: 92.83 KB
Datasheet: TMC1175A-Raytheon.pdf
Description: Video A/D Converter
