RMTR10300 10-30 GHz Tripler MMIC

Raytheon

Description

RMTR10300 10-30 GHz Tripler MMIC ADVANCED INFORMATION .
The RMTR10300 is a 10 to 30 GHz Tripler designed to be used in the LO chain of point to point radios, point to multi-point communications, LMDS, and.

📥 Download Datasheet

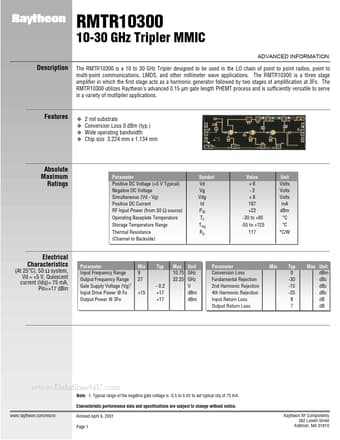

RMTR10300 Datasheet Preview — Preview of RMTR10300 PDF

Datasheet Specifications

Part number: RMTR10300
Manufacturer: Raytheon
File Size: 284.51 KB
Datasheet: RMTR10300_Raytheon.pdf
Description: 10-30 GHz Tripler MMIC

Features

* 2 mil substrate Conversion Loss 0 dBm (typ. ) Wide operating bandwidth Chip size 3.224 mm x 1.134 mm Absolute Maximum Ratings Parameter Positive DC Voltage (+5 V Typical) Negative DC Voltage Simultaneous (Vd - Vg) Positive DC Current RF Input Power (from 50 Ω source) Operating Baseplate Temperatur

Applications

* The RMTR10300 is a three stage amplifier in which the first stage acts as a harmonic generator followed by two stages of amplification at 3Fo. The RMTR10300 utilizes Raytheon’s advanced 0.15 µm gate length PHEMT process and is sufficiently versatile to serve in a variety of multiplier applications.
