D-607-10, D-607-09 - Coaxial Cable Termination

Raychem

The D-607-10 by Raychem is a Coaxial Cable Termination. Below is the official datasheet preview.

📥 Download Datasheet

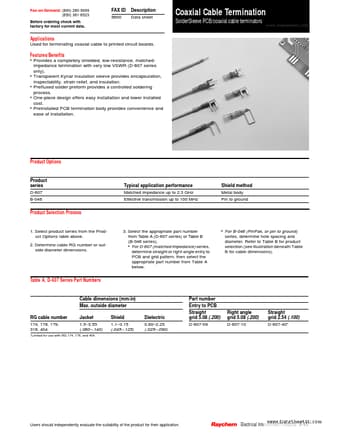

D-607-10 Coaxial Cable Termination by Raychem - Datasheet Preview — Official preview page of the **D-607-10** Coaxial Cable Termination datasheet (Raychem).

Datasheet Details

Part number	D-607-10, D-607-09
Manufacturer	Raychem
File Size	91.09 KB
Description	Coaxial Cable Termination
Datasheet	D-607-09_Raychem.pdf
Note	This datasheet PDF includes multiple part numbers: D-607-10, D-607-09. Please refer to the document for exact specifications by model.
Additional preview pages of the D-607-10 datasheet.

D-607-10 Product details

Description

Data sheet Coaxial Cable Termination SolderSleeve PCB/coaxial cable terminators www.DataSheet4U.com Applications Used for terminating coaxial cable to printed circuit boards.

Features

Benefits.
Provides a completely shielded, low-resistance, matchedimpedance termination with very low VSWR (D-607 series only).
Transparent Kynar insulation sleeve provides encapsulation, inspectability, strain relief, and insulation.
Prefluxed solder preform provides a controlled soldering process.
One-piece design offers easy installation and lower installed cost.
Preinstalled PCB termination body provides convenience and ease of installation. P.
