FM21LD16 - 2Mbit F-RAM Memory

Ramtron

📥 Download Datasheet

FM21LD16 Datasheet Preview — Preview of FM21LD16 PDF

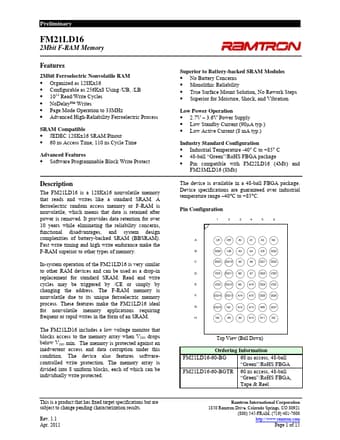

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FM21LD16
Manufacturer	Ramtron
File Size	347.07 KB
Description	2Mbit F-RAM Memory
Datasheet	FM21LD16_Ramtron.pdf

FM21LD16 Product details

Description

The FM21LD16 is a 128Kx16 nonvolatile memory that reads and writes like a standard SRAM.

Features

2Mbit Ferroelectric Nonvolatile RAM.
Organized as 128Kx16.
Configurable as 256Kx8 Using /UB, /LB.
1014 Read/Write Cycles.
NoDelay™ Writes.
Page Mode Operation to 33MHz.
Advanced High-Reliability Ferroelectric Process SRAM Compatible.
JEDEC 128Kx16 SRAM Pinout.
60 ns Access Time, 110 ns Cycle Time Advanced Features.
Software Programmable Block Write Protect Superior to Battery-backed SRAM Modules.
No Battery.
