FM1114 - Nonvolatile 3V Dual State Saver

Name: FM1114
SKU: FM1114-606354

Ramtron International Corporation

📥 Download Datasheet

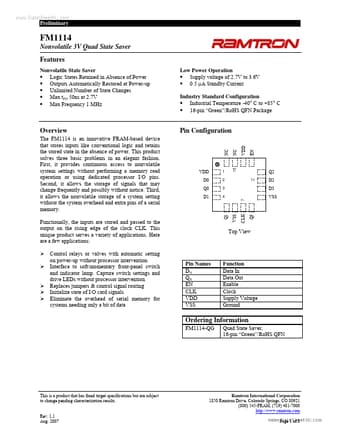

FM1114 Datasheet Preview — Preview of FM1114 PDF

Datasheet Details

Part number	FM1114
Manufacturer	Ramtron International Corporation
File Size	151.52 KB
Description	Nonvolatile 3V Dual State Saver
Datasheet	FM1114_RamtronInternationalCorporation.pdf

FM1114 Product details

Description

Pin Name D(3:0) Q(3:0) CLK EN VDD VSS I/O I O I I Supply Supply Description Data inputs Data outputs Clock: On a rising edge of CLK, the DN inputs are transferred to the QN outputs.

Features

Nonvolatile State Saver.
Logic States Retained in Absence of Power.
Outputs Automatically Restored at Power-up.
Unlimited Number of State Changes.
Max tPD 50ns at 2.7V.
Max Frequency 1 MHz Low Power Operation.
Supply voltage of 2.7V to 3.6V.
0.5 µA Standby Current Industry Standard Configuration.
Industrial Temperature -40° C to +85° C.
16-pin “Green”/RoHS QFN Package Overview The FM1114 is an innovative FRAM-based.
