LMT3 - NBFM Multi-channel transmitter

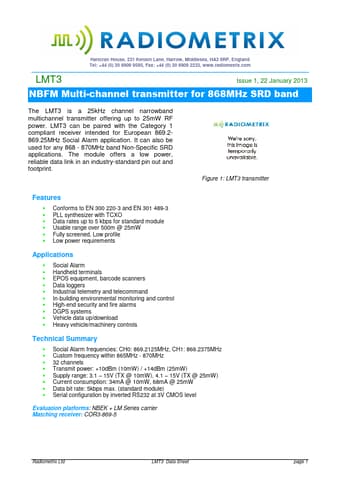

The LMT3 by Radiometrix is a NBFM Multi-channel transmitter. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LMT3 NBFM Multi-channel transmitter datasheet (Radiometrix).

Datasheet Details

Part number LMT3
Manufacturer Radiometrix
File Size 253.81 KB
Description NBFM Multi-channel transmitter
Datasheet download datasheet LMT3-Radiometrix.pdf
Additional preview pages of the LMT3 datasheet.

LMT3 Product details

Description

LMT3 Pin Name 1a Vcc 2a 0V 3a TXE 4a TXD 5a No pin Function 3.1 15V power supply (@ 10mW) 4.1 15V power supply (@ 25mW) Ground Transmit Enable (active low) DC coupled input for 3V CMOS logic.Rin=47kΩ Not present in LMT3 1b P0/PGM 2b P1 3b P2 4b P3 5b No pin Parallel Channel select LSB Serial frequency programming / configuration1 Parallel Channel select Parallel Channel select Parallel Channel select MSB Not present in LMT3 Notes: 1. Serial programming is by a
