RY3420 - 5.5V 2A 1.2MHz Synchronous Step-Down Regulator

Description

The RY3420 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture.

The device is available in an adjustable version.

The 2.7V to 5.5V input voltage range makes the RY3420 ideally suited for single Li-Ion battery powered applications.

Features

  • 2.7V to 5.5V Input Voltage Range.
  • 2A Continuous Output Current.
  • 1.2MHz Switching Frequency.
  • Built-in Short Protection.
  • Built-in Over Current Limit.
  • Built-in Over Voltage Protection.
  • PFM Mode for High Efficiency in Light Load.
  • High Efficiency: Up to 96%.
  • Internal Soft-Start.
  • Output Adjustable from 0.6V.
  • Over Temperature Protected.
  • Low Quiescent Current: 40μA.
  • Available in SOT23-.

📥 Download Datasheet

Datasheet Details

Part number RY3420
Manufacturer RYCHIP
File Size 1.14 MB
Description 5.5V 2A 1.2MHz Synchronous Step-Down Regulator
Datasheet download datasheet RY3420 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RY3420 1.2MHz 2A Synchronous Step-Down Regulator ChipSourceTek
RY3430 1.2MHz 3A Synchronous Step-Down Regulator ChipSourceTek
RY31A High Frequency Resistor Token
RY3820E 18V 2A 500KHz Synchronous Step-Down Regulator ChipSourceTek
RY3D-K MINIATURE RELAY Fujitsu

Other Datasheets by RYCHIP

Part Number Description
RY3408 5.5V 1A 1.5MHz Synchronous Step-Down Regulator
RY3430 5.5V 3A 1.2MHz Synchronous Step-Down Regulator
RY3740 1.2MHz Boost Regulator
RY3750 Step-Up Converter
RY3831 18V 2.5A 500KHz Synchronous Step-Down Regulator

Full PDF Text Transcription

Click to expand full text

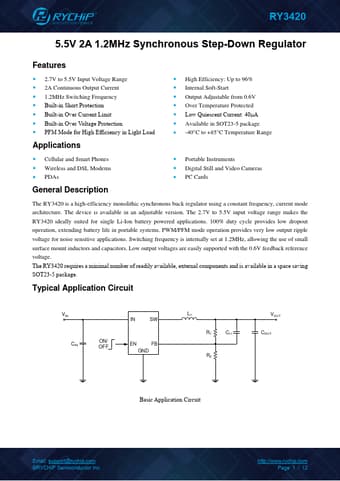

RY3420 5.5V 2A 1.2MHz Synchronous Step-Down Regulator Features • 2.7V to 5.5V Input Voltage Range • 2A Continuous Output Current • 1.2MHz Switching Frequency • Built-in Short Protection • Built-in Over Current Limit • Built-in Over Voltage Protection • PFM Mode for High Efficiency in Light Load • High Efficiency: Up to 96% • Internal Soft-Start • Output Adjustable from 0.6V • Over Temperature Protected • Low Quiescent Current: 40μA • Available in SOT23-5 package • -40°C to +85°C Temperature Range Applications • Cellular and Smart Phones • Wireless and DSL Modems • PDAs • Portable Instruments • Digital Still and Video Cameras • PC Cards General Description The RY3420 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture.
