RS721S CMOS Operational Amplifier

RS721S Description

RS721S, RS722S RS721, RS722, RS724 10MHz, Rail-to-Rail I/O CMOS Operational Amplifier .
The RS72X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, prov.

RS721S Features

* HIGH GAIN BANDWIDTH:10MHz
* RAIL-TO-RAIL INPUT AND OUTPUT 0.9mV Typical Vos
* INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V
* SUPPLY RANGE: +2.5V to +5.5V
* SHUTDOWN: RS721S/RS722S
* SPECIFIED UP TO +125°C
* MicroSIZE PACKAGES: SOT23-5,

RS721S Applications

* SENSORS
* PHOTODIODE AMPLIFICATION
* ACTIVE FILTERS
* TEST EQUIPMENT

📥 Download Datasheet

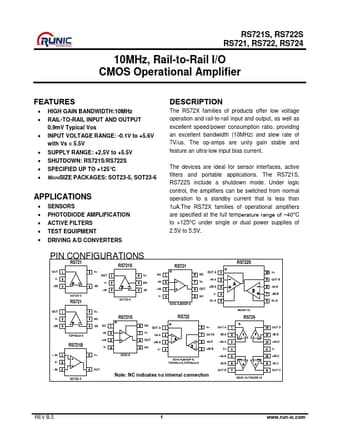

Preview of RS721S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS721S
Manufacturer
RUNIC
File Size
879.99 KB
Datasheet
RS721S-RUNIC.pdf
Description
CMOS Operational Amplifier
