RS6651 - Efficient Synchronous Step-Up Converter

Name: RS6651
SKU: RS6651-1583327

RUNIC

📥 Download Datasheet

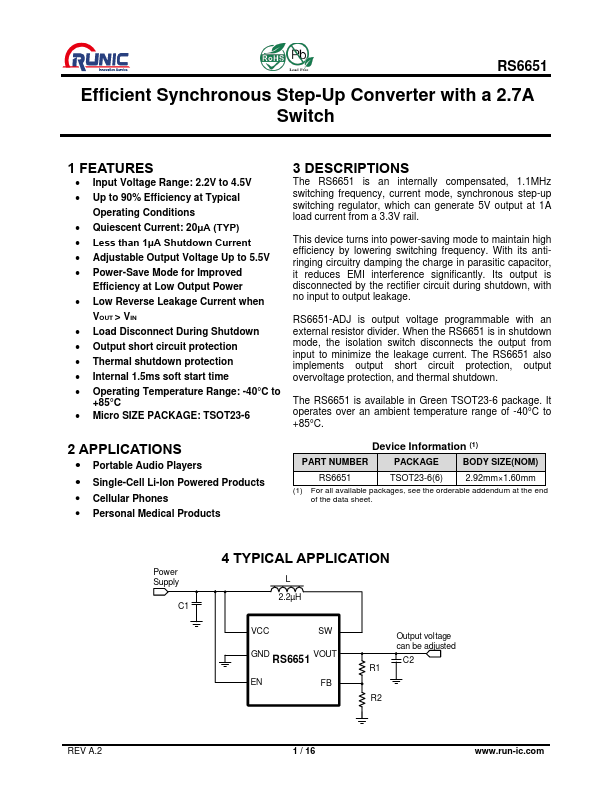

RS6651 Datasheet Preview — Preview of RS6651 PDF

Datasheet Details

Part number	RS6651
Manufacturer	RUNIC
File Size	847.30 KB
Description	Efficient Synchronous Step-Up Converter
Datasheet	RS6651-RUNIC.pdf

RS6651 Product details

Description

The RS6651 is an internally compensated, 1.1MHz switching frequency, current mode, synchronous step-up switching regulator, which can generate 5V output at 1A load current from a 3.3V rail.

Features

Input Voltage Range: 2.2V to 4.5V.
Up to 90% Efficiency at Typical Operating Conditions.
Quiescent Current: 20μA (TYP).
Less than 1μA Shutdown Current.
Adjustable Output Voltage Up to 5.5V.
Power-Save Mode for Improved Efficiency at Low Output Power.
Low Reverse Leakage Current when VOUT > VIN.
Load Disconnect During Shutdown.
Output short circuit protection.
Thermal shutdown protection.
Internal.
