RS3112 Precision Voltage Reference

RUNIC

RS3112 Description

RS3112 Low-Noise, Very Low Drift, Precision Voltage Reference 1 .
The RS3112 is a family of low-noise, low-drift, very high precision voltage references.

RS3112 Features

* Low Temperature Drift: 20 ppm/°C(Max)
* High Accuracy: 0.1% Maximum
* Low Noise: 35μVPP/V
* Low IQ: 150μA (Typical)
* Operating Temperature Range: -40°C to +125°C
* High Output Current: ±10 mA
* Micro SIZE PACKAGES: SOIC-8(SOP8)、 SOT23 3 DES

RS3112 Applications

* Precision Data Acquisition Systems
* Semiconductor Test Equipment
* Medical Instrumentation
* Industrial Process Controls
* Pressure and Temperature Transmitters
* Lab and Field Instrumentation The RS3112 is available in Green SOIC-8(SOP8) and SOT23

📥 Download Datasheet

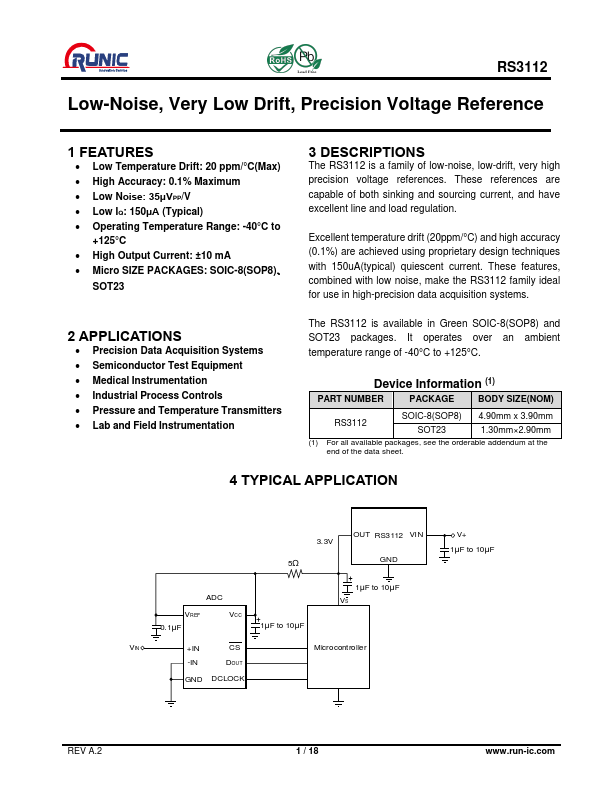

RS3112 Datasheet Preview — Preview of RS3112 PDF

Datasheet Details

Part number: RS3112
Manufacturer: RUNIC
File Size: 1.81 MB
Datasheet: RS3112-RUNIC.pdf
Description: Precision Voltage Reference
