RS2G14 - Dual Schmitt-Trigger Inverter

RUNIC

📥 Download Datasheet

RS2G14 Datasheet Preview — Preview of RS2G14 PDF

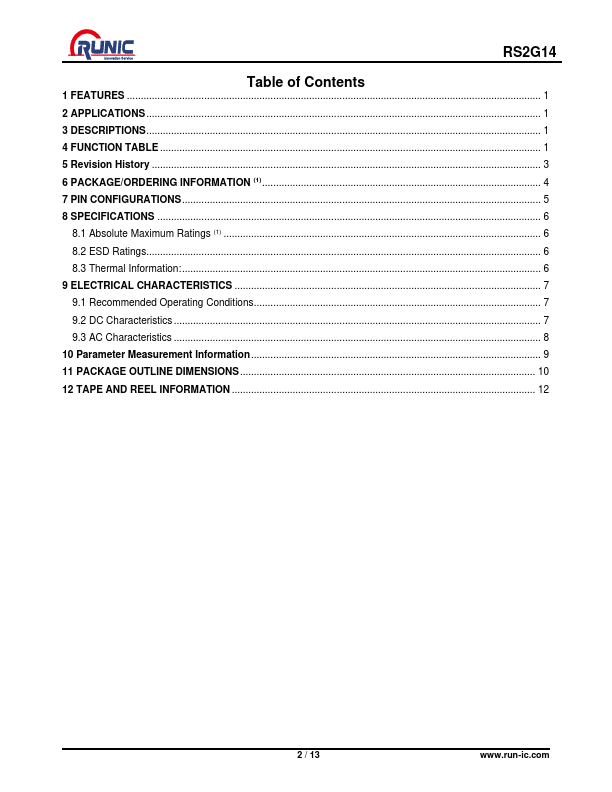

datasheet Preview Page 2

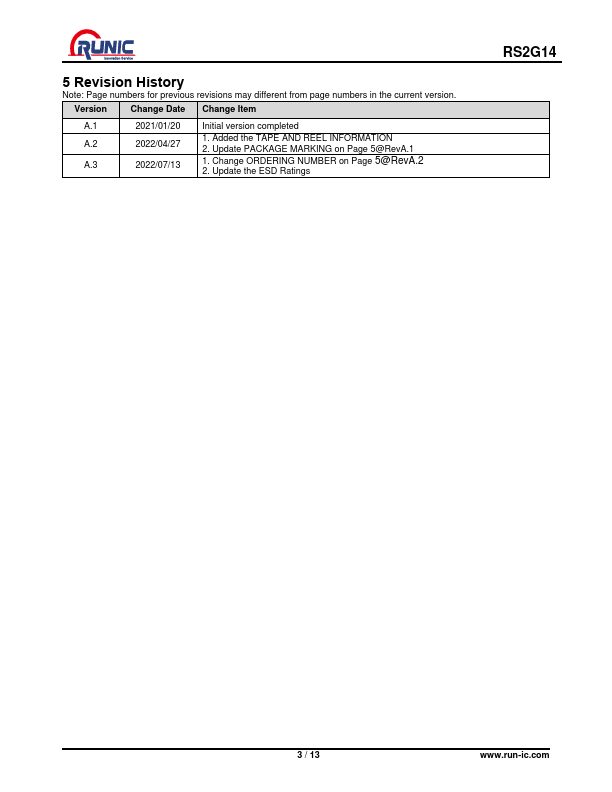

datasheet Preview Page 3

Datasheet Details

Part number: RS2G14
Manufacturer: RUNIC
File Size: 339.88 KB
Datasheet: RS2G14-RUNIC.pdf
Description: Dual Schmitt-Trigger Inverter

RS2G14 Product details

Description

The RS2G14 Dual Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation.

Features

Operating Voltage Range:1.65V to 5.5V.
Low Power Consumption:1µA (Max).
Operating Temperature Range: -40°C to +125°C.
Input Accept Voltage to 5.5V.
High Output Drive: ±24mA at VCC=3.0V.
Ioff Supports Partial-Power-Down Mode Operation.
Micro SIZE.
