RS2599 - Precision Adjustable Current Limited Power Distribution Switches

RS2599 Description

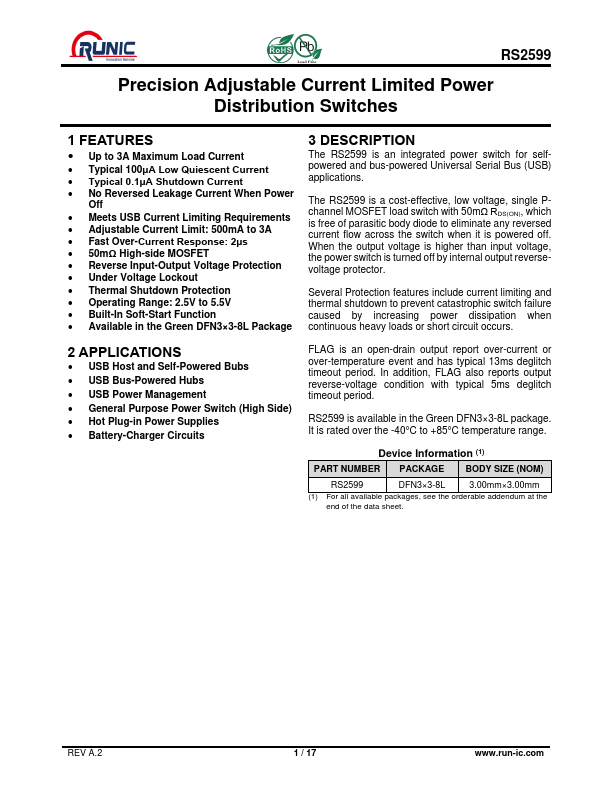

RS2599 Precision Adjustable Current Limited Power Distribution Switches 1 .
The RS2599 is an integrated power switch for selfpowered and bus-powered Universal Serial Bus (USB) applications.

RS2599 Features

* Up to 3A Maximum Load Current
* Typical 100μA Low Quiescent Current
* Typical 0.1μA Shutdown Current
* No Reversed Leakage Current When Power Off
* Meets USB Current Limiting Requirements
* Adjustable Current Limit: 500mA to 3A
* Fast Over-Cu

RS2599 Applications

* The RS2599 is a cost-effective, low voltage, single Pchannel MOSFET load switch with 50mΩ RDS(ON), which is free of parasitic body diode to eliminate any reversed current flow across the switch when it is powered off. When the output voltage is higher than input voltage, the power switch is turned

📥 Download Datasheet

Preview of RS2599 PDF

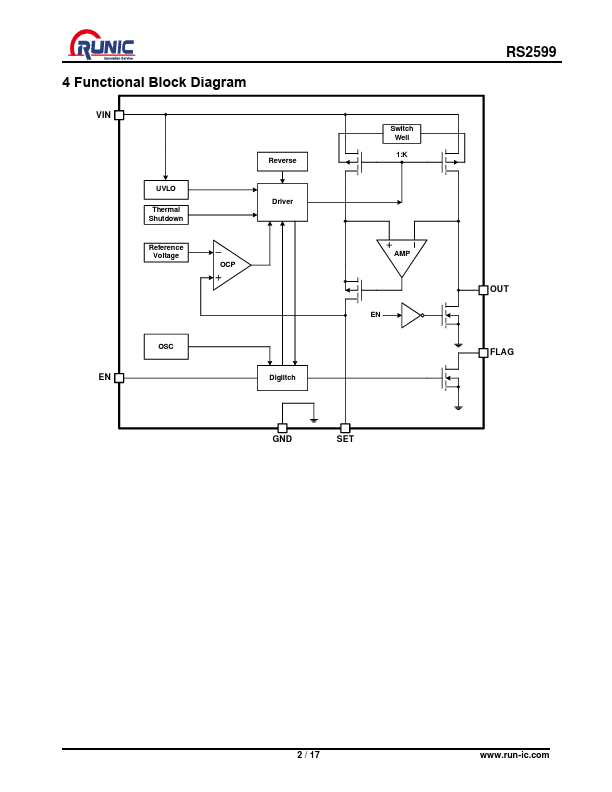

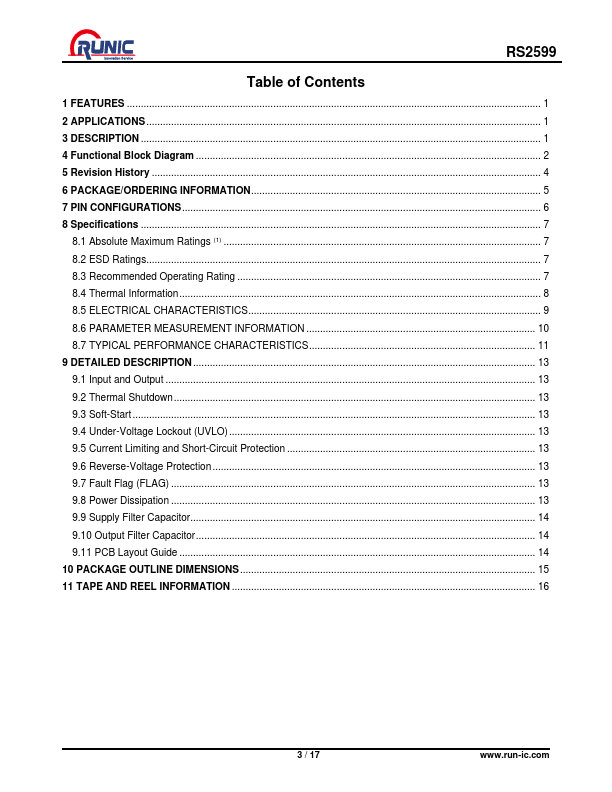

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS2599
Manufacturer
RUNIC
File Size
950.93 KB
Datasheet
RS2599-RUNIC.pdf
Description
Precision Adjustable Current Limited Power Distribution Switches
