SCS212AJHR - Automotive Grade SiC Schottky Barrier Diode

Features

  • 1) AEC-Q101 qualified lInner circuit (1) 2) Low forward voltage 3) Negligible recovery time/current 4) Temperature independent switching behavior (2) (3) (4) (1) Cathode (2) N / C (3) Cathode (4) Anode l.

📥 Download Datasheet

Datasheet Details

Part number SCS212AJHR
Manufacturer ROHM
File Size 930.85 KB
Description Automotive Grade SiC Schottky Barrier Diode
Datasheet download datasheet SCS212AJHR Datasheet

📁 Similar Datasheet

  • SCS217F - Surface Mount Switching Diode (SeCoS)
  • SCS217K - Surface Mount Switching Diode (SeCoS)
  • SCS21DSTL - Switching Diode (SeCoS)
  • SCS21DSTL-C - Switching Diode (SeCoS)
  • SCS202ND - Surface Mount Switching Diode (SeCoS)
  • SCS202NF - Dual Series Chips Surface Mount Switching Diode (SeCoS)
  • SCS202NK - Plastic-Encapsulated Small Signal Switching Diode (SeCoS)
  • SCS202PD - Surface Mount Switching Diode (SeCoS)
  • SCS202PF - Surface Mount Switching Diode (SeCoS)
  • SCS202PK - Surface Mount Switching Diode (SeCoS)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

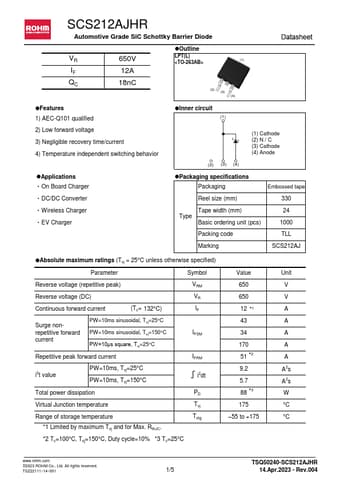

SCS212AJHR Automotive Grade SiC Schottky Barrier Diode lOutline VR 650V LPT(L) (1) IF 12A QC 18nC (2) (3) (4) Datasheet lFeatures 1) AEC-Q101 qualified lInner circuit (1) 2) Low forward voltage 3) Negligible recovery time/current 4) Temperature independent switching behavior (2) (3) (4) (1) Cathode (2) N / C (3) Cathode (4) Anode lApplications On Board Charger DC/DC Converter lPackaging specifications Packaging Reel size (mm) Embossed tape 330 Wireless Charger EV Charger Tape width (mm) Type Basic ordering unit (pcs) 24 1000 Packing code TLL Marking SCS212AJ lAbsolute maximum ratings (Tvj = 25°C unless otherwise specified) Parameter Symbol Value Unit Reverse voltage (repetitive peak) VRM 650 V Reverse voltage (DC) VR 650 V Continuous
