RF302LAM2STF Super Fast Recovery Diode

ROHM

RF302LAM2STF Description

Super Fast Recovery Diode RF302LAM2STF Datasheet *Series *Dimensions (Unit : mm) AEC-Q101 Qualified *Land Size Figure (Unit : mm) St.

RF302LAM2STF Features

* 1) Low forward voltage 2) Low switching loss 3) High current overload capacity (2) 1.50±0.20 0.95±0.10 ROHM : PMDTM JEDEC : SOD-128 : Manufacture Date
* Construction Silicon epitaxial planar type
* Taping Dimensions (Unit : mm)
* Structure Cathode Anode
* Absolute Maximum Ratings

RF302LAM2STF Applications

* General rectification PMDTM

📥 Download Datasheet

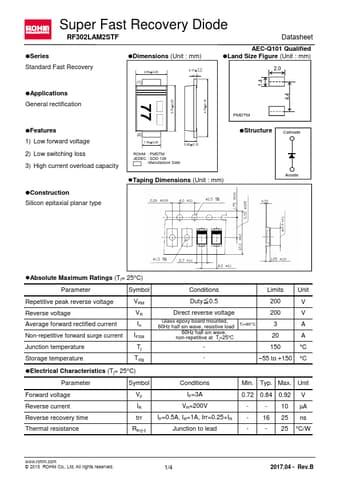

RF302LAM2STF Datasheet Preview — Preview of RF302LAM2STF PDF

Datasheet Details

Part number: RF302LAM2STF
Manufacturer: ROHM ↗
File Size: 819.97 KB
Datasheet: RF302LAM2STF-ROHM.pdf
Description: Super Fast Recovery Diode
