RF2001T3DFH Fast Recovery Diode

RF2001T3DFH Description

Fast recovery diodes RF2001T3DFH *Applications General rectification *.

RF2001T3DFH Features

* 1) Cathode common type. (TO-220) 2) Ultra Low VF 3) Very fast recovery 4) Low switching loss
* Construction Silicon epitaxial planar
* Dimensions (Unit : mm) 10.0±0.3 　　　 0.1 4.5±0.3 　　　 0.1 2.8±0.2 　　　 0.1 5.0±0.2 8.0±0.2 12.0±0.2 13.5MIN 15.0±0.4 　 0.2 8.0 ① 1.2 1.3 0.8 (1) (2) (3) ROHM

RF2001T3DFH Applications

* General rectification

📥 Download Datasheet

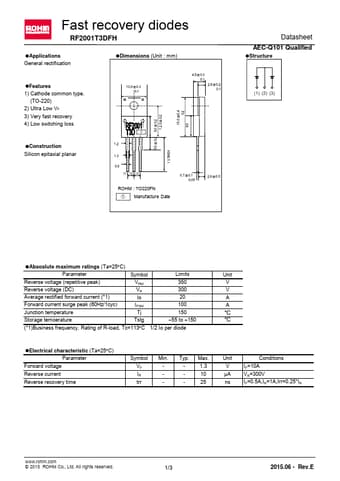

Preview of RF2001T3DFH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF2001T3DFH
Manufacturer
ROHM ↗
File Size
336.18 KB
Datasheet
RF2001T3DFH-ROHM.pdf
Description
Fast Recovery Diode
