DTA124TM, DTA124TE - PNP Digital transistor

Name: DTA124TM
SKU: DTA124TM-1432347

ROHM

The DTA124TM by ROHM is a PNP Digital transistor. Below is the official datasheet preview.

Datasheet Details

Part number	DTA124TM, DTA124TE
Manufacturer	ROHM
File Size	1.15 MB
Description	PNP Digital transistor
Datasheet	DTA124TE_Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: DTA124TM, DTA124TE. Please refer to the document for exact specifications by model.

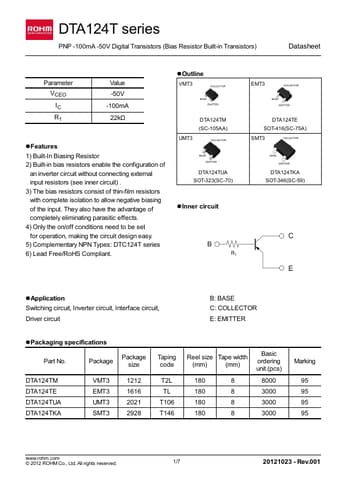

Additional preview pages of the DTA124TM datasheet.

1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors 　with complete isolation to allow negative biasing 　of the input. They also have the advantage of 　completely eliminating parasitic effects. 4) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 5) Complementary NPN Types: DTC124T serie.
