Click to expand full text
NotNeRwecDoemsimgennsded for

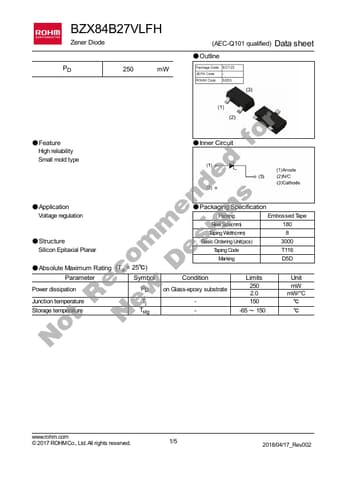

BZX84B27VLFH
Zener Diode
(AEC-Q101 qualified) Data sheet
●Outline
PD 250 mW
●Feature High reliability Small mold type
●Inner Circuit
●Application Voltage regulation
●Structure Silicon Epitaxial Planar
●Absolute Maximum Rating (Ta = 25℃)
Parameter
Symbol
Power dissipation
PD
Junction temperature Storage temperature
Tj Tstg
●Packaging Specification
Packing
Embossed Tape
Reel Size(mm)
180
Taping Width(mm)
8
Basic Ordering Unit(pcs)
3000
Taping Code
T116
Marking
D5D
Condition on Glass-epoxy substrate
-
Limits 250 2.0 150
-65 ～ 150
Unit mW mW/°C
℃
℃
www.rohm.com © 2017 ROHMCo., Ltd.All rights reserved.
1/5 2018/04/17_Rev.
BZX84B27VLFH Datasheet
