BU9794AKV Standard LCD Segment Driver

BU9794AKV Description

Datasheet Standard LCD Segment Driver BU9794AKV MAX 200 segments (SEG50×COM4) *.

BU9794AKV Features

* Integrated RAM for display data (DDRAM) : 50 × 4bit (Max 200 Segment)
* LCD drive output : 4 Common output, 50 Segment output
* Integrated Buffer AMP for LCD driving
* Integrated Oscillator circuit
* No external components
* Low power consumption design
* Independent po

BU9794AKV Applications

* Telephone
* FAX
* Portable equipment (POS, ECR, PDA etc. )
* DSC
* DVC
* Car audio
* Home electrical appliance
* Meter equipment, etc.
* Key Specifications
* Supply Voltage Range: +2.5V to +5.5V
* LCD drive power supply Range: +2.5V to +5.5V
* Ope

📥 Download Datasheet

Preview of BU9794AKV PDF

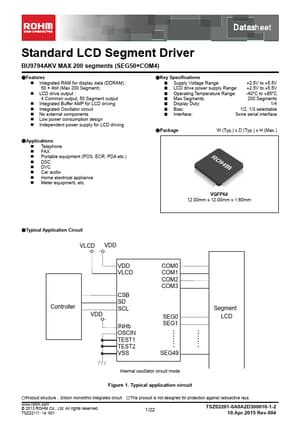

datasheet Preview Page 2 datasheet Preview Page 3
