BU91510KV-M - Multi-function LCD Segment Drivers

ROHM

📥 Download Datasheet

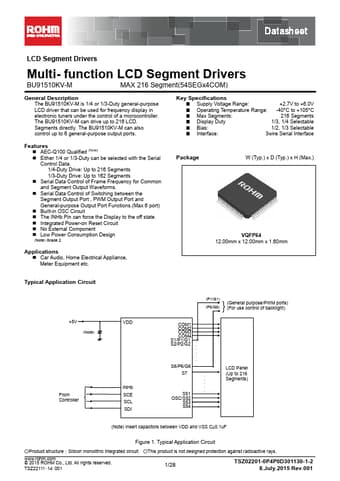

BU91510KV-M Datasheet Preview — Preview of BU91510KV-M PDF

Datasheet Details

Part number	BU91510KV-M
Manufacturer	ROHM
File Size	1.36 MB
Description	Multi-function LCD Segment Drivers
Datasheet	BU91510KV-M-ROHM.pdf

BU91510KV-M Product details

Description

The BU91510KV-M is 1/4 or 1/3-Duty general-purpose LCD driver that can be used for frequency display in electronic tuners under the control of a microcontroller. Supply Voltage Range: +2.7V to +6.0V Operating Temperature Range: -40°C to +105°C Max Segments: 216 Segments Display Duty 1/3, 1/4 Selectable Bias:

Features

AEC-Q100 Qualified (Note).
Either 1/4 or 1/3-Duty can be selected with the Serial Control Data. 1/4-Duty Drive: Up to 216 Segments 1/3-Duty Drive: Up to 162 Segments.
Serial Data Control of Frame Frequency for Common and Segment Output Waveforms.
Serial Data Control of Switching between the S.
