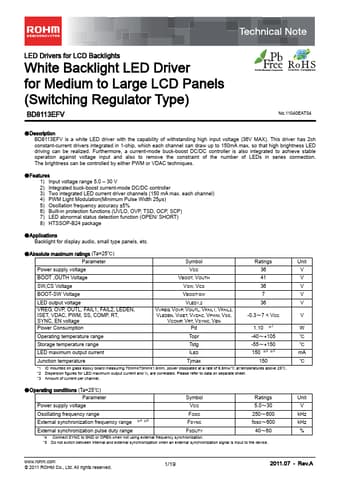

BD8113EFV - White Backlight LED Driver

Name: BD8113EFV
SKU: BD8113EFV-1082014

ROHM

Datasheet Details

BD8113EFV is a white LED driver with the capability of withstanding high input voltage (36V MAX).

1) Input voltage range 5.0.
30 V 2) Integrated buck-boost current-mode DC/DC controller 3) Two integrated LED current driver channels (150 mA max. each channel) 4) PWM Light Modulation(Minimum Pulse Width 25µs) 5) Oscillation frequency accuracy ±5% 6) Built-in protection functions (UVLO, OVP.
