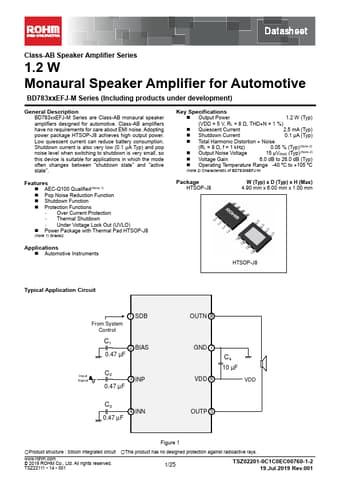

BD78308EFJ-M, BD78306EFJ-M - Monaural Speaker Amplifier

Datasheet Details

Part number	BD78308EFJ-M, BD78306EFJ-M
Manufacturer	ROHM
File Size	1.60 MB
Description	Monaural Speaker Amplifier
Datasheet	BD78306EFJ-M-ROHM.pdf
Note	This datasheet PDF includes multiple part numbers: BD78308EFJ-M, BD78306EFJ-M. Please refer to the document for exact specifications by model.

BD783xxEFJ-M Series are Class-AB monaural speaker amplifiers designed for automotive.

AEC-Q100 Qualified(Note 1).
Pop Noise Reduction Function.
Shutdown Function.
Protection Functions - Over Current Protection - Thermal Shutdown - Under Voltage Lock Out (UVLO).
Power Package with Thermal Pad HTSOP-J8 (Note 1) Grade2.
