BD6425, BD6422EFV - Stepping Motor Drivers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD6425, BD6422EFV. Please refer to the document for exact specifications by model.

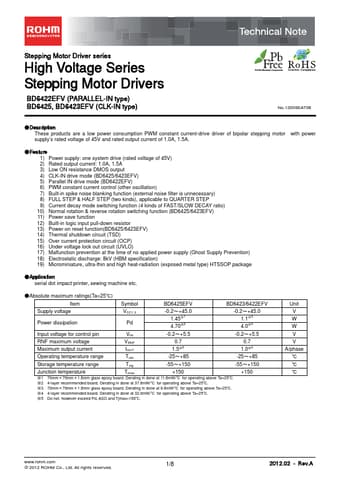

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number BD6425, BD6422EFV
Manufacturer ROHM
File Size 361.12 KB
Description Stepping Motor Drivers
Datasheet download datasheet BD6422EFV-ROHM.pdf
Note This datasheet PDF includes multiple part numbers: BD6425, BD6422EFV.
Please refer to the document for exact specifications by model.

BD6425 Product details

Description

These products are a low power consumption PWM constant current-drive driver of bipolar stepping motor with power supply’s rated voltage of 45V and rated output current of 1.0A, 1.5A. Feature 1) Power supply: one system drive (rated voltage of 45V) 2) Rated output current: 1.0A, 1.5A 3) Low ON resistance DMOS output 4) CLK-IN drive mode (BD6425/6423EFV) 5) Parallel IN drive mode (BD6422EFV) 6) PWM constant current control (other oscillation) 7) Built-in spike noise blanking function (exter
