BD6164GUT - 320mA LED Camera Flash Driver

BD6164GUT Description

Datasheet 320mA LED Camera Flash Driver With I2C Compatible Interface BD6164GUT General .
The BD6164GUT is 320mA Flash LED driver with Synchronous rectification step up DC/DC converter that can drive 1 Flash LED.

BD6164GUT Features

* Current regulation for LED
* Flash LED Current driver (260mA,280mA,300mA,320mA)
* Assist Light Function LED Current driver (52mA, 72mA)
* High efficiency : 85% (LED current 300mA, VBAT=3.6V, LED Vf=3.6V, 4MHz mode,Ta=25 oC)
* I2C Control I/F
* Synchronous rectification step

📥 Download Datasheet

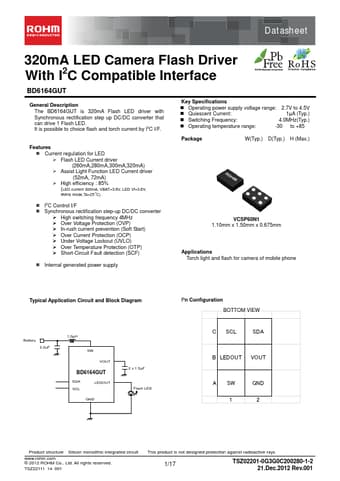

Preview of BD6164GUT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD6164GUT
Manufacturer
ROHM ↗
File Size
415.04 KB
Datasheet
BD6164GUT-ROHM.pdf
Description
320mA LED Camera Flash Driver
