BD2808MUV-M - 24ch Constant Current LED Driver

ROHM

📥 Download Datasheet

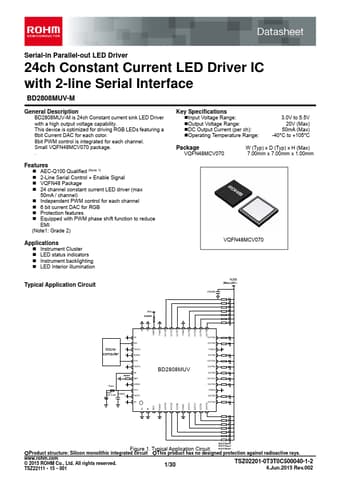

BD2808MUV-M Datasheet Preview — Preview of BD2808MUV-M PDF

Datasheet Details

Part number	BD2808MUV-M
Manufacturer	ROHM
File Size	748.37 KB
Description	24ch Constant Current LED Driver
Datasheet	BD2808MUV-M-ROHM.pdf

BD2808MUV-M Product details

Description

BD2808MUV-M is 24ch Constant current sink LED Driver with a high output voltage capability. Input Voltage Range: Output Voltage Range: DC Output Current (per ch): Operating Temperature Range: 3.0V to 5.5V 20V (Max) 50mA (Max) -40°C to +105°C Package VQFN48MCV070 W (Typ) x D (Typ) x H (M

Features

AEC-Q100 Qualified (Note 1).
2-Line Serial Control + Enable Signal.
VQFN48 Package.
24 channel constant current LED driver (max 50mA / channel).
Independent PWM control for each channel.
6 bit current DAC for RGB.
Protection features.
Equipped with PWM phase shift function to reduce EMI (Note1: Grade 2) Appl.
