BD18347EFV-M, BD18337EFV-M Constant Current LED Driver

BD18347EFV-M Description

Datasheet For Automotive, 40 V 150 mA 4ch Constant Current LED Driver BD18337EFV-M BD18347EFV-M General .
BD18337EFV-M / BD18347EFV-M are 40 V-withstanding constant current LED driver for automotive applications.

BD18347EFV-M Features

* AEC-Q100 Qualified(Note 1)
* Energy Sharing Control
* PWM Dimming Function
* License Lamp Mode
* LED Open Detection
* OUTx pin Short Circuit Protection (SCP)
* Over Voltage Mute Function (OVM)
* Disable LED Open Detection Function at Reduced-Voltage
* LED Failur

BD18347EFV-M Applications

* It is a 4 channel LED driver with the built-in energy sharing control which can realize to make the board size small. High reliability can be realized with LED Open Detection, the OUTx (all later x=1 to 4) pin Short Circuit Protection, Over Voltage Mute and Thermal Shutdown Function. In case the ou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD18347EFV-M, BD18337EFV-M. Please refer to the document for exact specifications by model.

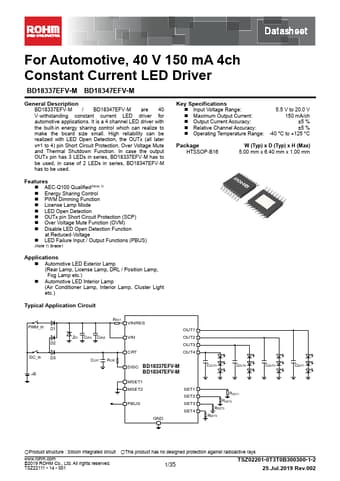

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD18347EFV-M, BD18337EFV-M
Manufacturer
ROHM ↗
File Size
1.97 MB
Datasheet
BD18337EFV-M-ROHM.pdf
Description
Constant Current LED Driver
Note
This datasheet PDF includes multiple part numbers: BD18347EFV-M, BD18337EFV-M.
Please refer to the document for exact specifications by model.
