BD16950EFV-C 2ch Half-Bridge Gate Driver

BD16950EFV-C Description

2ch Half-Bridge Gate Driver BD16950EFV-C General .
The BD16950EFV is an AEC-Q100 automotive qualified 2-channel Half-Bridge Gate Driver, controlled by an external MCU through a 16-bit Serial Peripheral.

BD16950EFV-C Features

* AEC-Q100 Qualified(Note1)
* 2ch Half-Bridge Gate Drivers
* 4 external MOSFETs are Controlled Independently
* Half-Bridge Control Modes are Selected by SPI
* Slew Rates are Controlled with Constant Source /Sink Current.
* 500 kHz Oscillation for Charge Pump.
* 16bit SPI

BD16950EFV-C Applications

* 4WD Torque Distribution System, Power Window Lifter, Sun Roof Module, Wiper, Seat Belt Tensioner, Seat Positioning etc. Typical Application Circuit VBAT VS CVS VP CCP1 Voltage Regulator CCP2 CVCC CP CPM CPP VCC DRAIN GH1 SH1 GH2 SI BDD1166995502EEFFVV SH2 SO GL1 SCLK GL2 μC CSB

📥 Download Datasheet

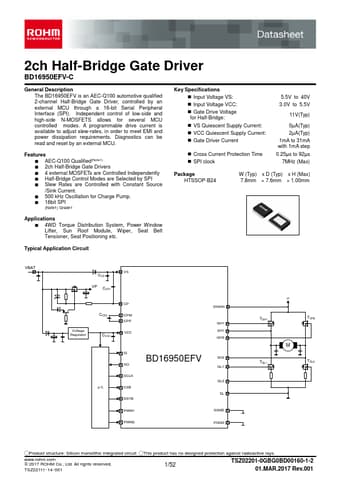

Preview of BD16950EFV-C PDF
