STQ2016Z, STQ-2016 700 MHz to 2500 MHz DIRECT QUADRATURE MODULATOR

STQ2016Z Description

STQ-2016(Z) 700 MHz to 2500 MHz Direct Quadrature Modulator STQ-2016(Z) 700 MHz to 2500 MHz DIRECT QUADRATURE MODULATOR RFMD Green, RoHS Compliant, P.
RFMD’s STQ-2016 is a direct quadrature modulator targeted for use in a wide range of communications systems, including cellular/PCS, CDMA2000, UMTS, a.

STQ2016Z Features

* a wide 700 MHz to 2500 MHz operating frequency band, excellent carrier and sideband suppression, and a low broadband noise floor. The STQ-2016 uses silicon germanium (SiGe) device technology and delivers a typical output power of -11 dBm with typical 60 dB IM3 suppression. A digital input shut-down

STQ2016Z Applications

* Celllar/PCS/ CDMA2000/UMTS Transceivers ISM Band Transceivers, 900 MHz and 2400 MHz GMSK, QPSK, QAM, SSB Modulators
* Comments 2500 -9.0 Baseband 200 kHz @ 600 mVP-P differential Matched to 50 : (refer to schematics on pages 6 and 7) (I/Q inputs = 3.74 VP-P differen

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STQ2016Z, STQ-2016. Please refer to the document for exact specifications by model.

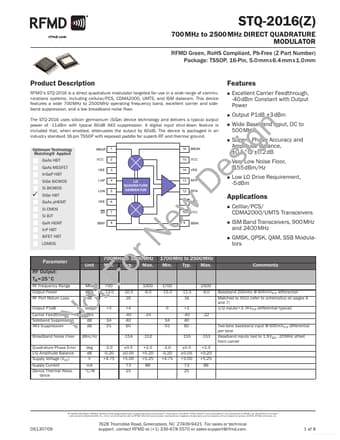

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STQ2016Z, STQ-2016
Manufacturer
RFMD
File Size
427.87 KB
Datasheet
STQ-2016-RFMD.pdf
Description
700 MHz to 2500 MHz DIRECT QUADRATURE MODULATOR
Note
This datasheet PDF includes multiple part numbers: STQ2016Z, STQ-2016.
Please refer to the document for exact specifications by model.
