SPF-5043Z GaAs pHEMT LOW NOISE MMIC AMPLIFIER

SPF-5043Z Description

Preliminary SPF-5043Z 50MHz to 4000 MHz, GaAs pHEMT Low Noise MMIC Amplifier SPF-5043Z 50MHz to 4000MHz, GaAs pHEMT LOW NOISE MMIC AMPLIFIER RoHS Co.
The SPF-5043Z is a high performance pHEMT MMIC LNA designed for operation from 50MHz to 4000MHz.

SPF-5043Z Features

* Ultra-Low Noise Figure=0.8dB @ 900MHz
* Gain=18.2dB @ 900MHz
* High Linearity: OIP3=35dBm @ 1900MHz
* P1dB=21dBm @ 1900MHz
* Single-Supply Operation: 5V @ IDQ=46mA
* Flexible Biasing Options: 3V to 5V, Adjustable Current
* Broadband Internal

SPF-5043Z Applications

* Cellular, PCS, W-CDMA, ISM, WiMAX Receivers
* Low Noise, High Linearity Gain Block Applications Parameter Specification Min. Typ. Max. Small Signal Power Gain 18.2 12.9 Output Power at 1dB Compression 20.0 21.0 Output Third Order Intercept Point 33.0 35.0 Noise Figur

📥 Download Datasheet

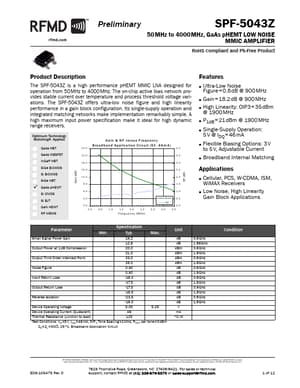

Preview of SPF-5043Z PDF
