KBJ401 - BRIDGE RECTIFIER

This page provides the datasheet information for the KBJ401, a member of the KBJ4005 BRIDGE RECTIFIER family.

Features

  • UL Recognized.
  • Current 4 Amps.
  • Voltage Range 50V ~ 1000V.
  • Glass passivated chip junction.
  • High surge forward current capability.
  • KBJ available in 6A, 8A, 10A, 15A, 20A, 25A, 35A and 50A.

📥 Download Datasheet

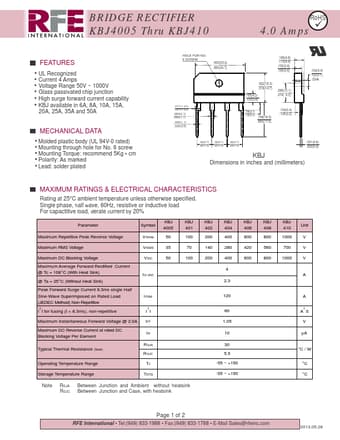

Datasheet preview – KBJ401

Datasheet Details

Part number KBJ401
Manufacturer RFE
File Size 65.98 KB
Description BRIDGE RECTIFIER
Datasheet download datasheet KBJ401 Datasheet
Additional preview pages of the KBJ401 datasheet.

📁 Similar Datasheet

  • KBJ401 - Silicon Bridge Rectifiers (GME)
  • KBJ401 - Glass Passivated Single-Phase Bridge Rectifier (SEMTECH)
  • KBJ401 - 4.0Amp Bridge Rectifiers (HUIXIN)
  • KBJ401 - 4.0A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBJ401 - 4.0Amp Glass Passivated Bridge Rectifiers (SeCoS)
  • KBJ401 - Single-phase Silicon Bridge Rectifier (PFS)
  • KBJ401 - GLASS PASSIVATED BRIDGE RECTIFIERS (Lunsure Electronic)
  • KBJ401 - SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (PFS)
  • KBJ401 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers (GOOD ELECTRONIC)
  • KBJ401 - Silicon Bridge Rectifiers Glass Passivated Bridge Rectifiers (UPM)
Other Datasheets by RFE

Full PDF Text Transcription

Click to expand full text
BRIDGE RECTIFIER KBJ4005 Thru KBJ410 RoHS 4.0 Amps ü FEATURES • UL Recognized • Current 4 Amps • Voltage Range 50V ~ 1000V • Glass passivated chip junction • High surge forward current capability • KBJ available in 6A, 8A, 10A, 15A, 20A, 25A, 35A and 50A MECHANICAL DATA • Molded plastic body (UL 94V-0 rated) • Mounting through hole for No. 6 screw • Mounting Torque: recommend 5Kg • cm • Polarity: As marked • Lead: solder plated HOLE FOR NO. 6 SCREW .995(25.3) .983(24.7) .057(1.45) .041(1.05) .083(2.1) .069(1.7) .043(1.1) .035(0.9) .189(4.8) .173(4.4) .150(3.8) .134(3.4) .602(15.3) .578(14.7) .165(4.2) .150(3.8) .398(10.1) .374( 9.5) .146(3.7) .130(3.3) .708(18.0) .669(17.0) .134(3.4) .126(3.2) .134(3.4) .122(3.1) DIA .303(7.7) .303(7.7) .287(7.3) .287(7.3) .303(7.7) .287(7.
