FSMD005-1206 - Surface Mount PPTC

Features

  • 1206 size, Surface mount.

📥 Download Datasheet

Datasheet Details

Part number FSMD005-1206
Manufacturer RFE
File Size 214.14 KB
Description Surface Mount PPTC
Datasheet download datasheet FSMD005-1206 Datasheet

📁 Similar Datasheet

  • FSMD005 - PPTC SMD Resettable Fuse (MAYLOON)
  • FSMD010 - PPTC SMD Resettable Fuse (MAYLOON)
  • FSMD010-1206-R - Surface Mountable PTC Resettable Fuse (FUZETEC)
  • FSMD020 - PPTC SMD Resettable Fuse (MAYLOON)
  • FSMD035 - PPTC SMD Resettable Fuse (MAYLOON)
  • FSMD050 - PPTC SMD Resettable Fuse (MAYLOON)
  • FSM-9 - Freespace Sensor (CEVA)
  • FSM101 - SURFACE MOUNT FAST RECOVERY RECTIFIER (DC COMPONENTS)
  • FSM101 - MELF Silicon Rectifier (Formosa MS)
  • FSM101 - SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere) (Rectron Semiconductor)
Other Datasheets by RFE

Full PDF Text Transcription

Click to expand full text

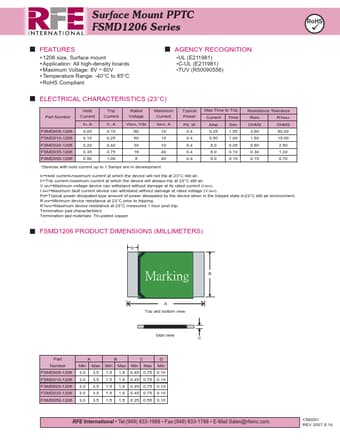

Surface Mount PPTC FSMD1206 Series FEATURES •1206 size, Surface mount •Application: All high-density boards •Maximum Voltage: 8V ~ 60V •Temperature Range: -40°C to 85°C •RoHS Compliant RoHS ü AGENCY RECOGNITION •UL (E211981) •C-UL (E211981) •TUV (R50090556) ELECTRICAL CHARACTERISTICS (23°C) Part Number FSMD005-1206 FSMD010-1206 FSMD020-1206 FSMD035-1206 FSMD050-1206 Hold Current IH, A 0.05 0.10 0.20 0.35 0.50 Trip Current IT, A 0.15 0.25 0.40 0.75 1.00 Rated Voltage VMAX, Vdc 60 60 30 16 8 Maximum Current IMAX, A 10 10 10 40 40 Typical Power Pd, W 0.4 0.4 0.4 0.4 0.4 Max Time to Trip Current Amp 0.25 0.50 8.0 8.0 8.0 Time Sec 1.50 1.00 0.05 0.10 0.10 Resistance Tolerance RMIN R1MAX OHMS 3.60 1.60 0.60 0.30 0.15 OHMS 50.00 15.00 2.50 1.20 0.70 *Devices with hold current up to 1.
