SF1145B SAW Filter

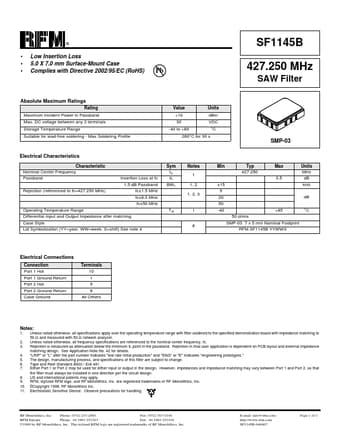

® SF1145B Pb Low Insertion Loss 5.0 X 7.0 mm Surface-Mount Case Complies with Directive 2002/95/EC (RoHS) 427.250 MHz SAW Filter Absolute Maximum Ratings Rating Maximum Incident Power in Passband Max. DC voltage between any 2 terminals Storage Temperature Range Suitable for lead-free soldering - Max Soldering Profile Value +10 30 -40 to +85 260°C for 30 s Units dBm VDC °C SMP-03 Electrical Characteristics Characteristic Nominal Center Frequency Passband Rejec.
