DR3300 - Transceiver Module

Product Overview

RF Monolithics

Datasheet Details

Part number	DR3300
Manufacturer	RF Monolithics
File Size	83.87 KB
Description	Transceiver Module
Datasheet	DR3300 Datasheet

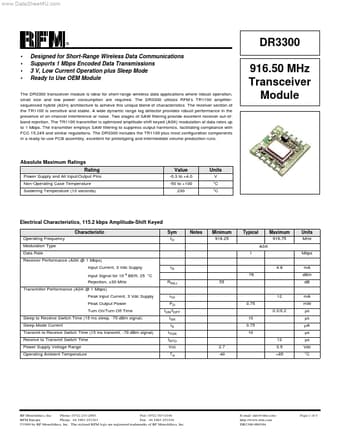

Additional preview pages of the DR3300 datasheet.

Product details

Description

Pin Name Transceiver Module Description This pin is connected directly to the transceiver AGCCAP pin, which controls the AGC reset operation.To enable AGC operation (required for ASK transmission) an external capacitor is placed between this pin and ground.The capacitor sets the minimum time the AGC will hold-in once it is engaged.The hold-in time is set to avoid AGC chattering.For a given hold-in time tAGH, the capacitor value CAGC is: CAGC = 19.1 tAGH, where tAGH is in µs and CAGC

Features

TR0 both high plac.
