RFSA2524 SERIAL CONTROLLED DIGITAL STEP ATTENUATOR

RF Micro Devices

Description

RFSA2524 Serial Controlled Digital Step Attenuator 50MHz to 4000MHz, 5Bit, 1dB LSB RFSA2524 SERIAL CONTROLLED DIGITAL STEP ATTENUATOR 50MHz TO 4000MH.
RFMD's RFSA2524 is a 5-bit digital step attenuator (DSA) that features high linearity over the entire 31dB gain control range with excellent step accu.

📥 Download Datasheet

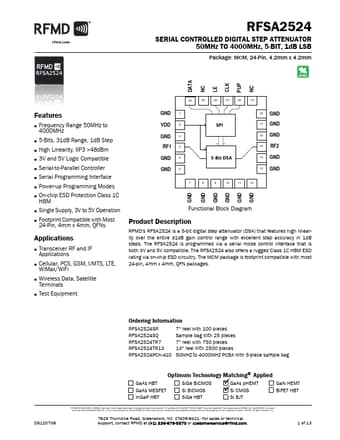

RFSA2524 Datasheet Preview — Preview of RFSA2524 PDF

Datasheet Specifications

Part number: RFSA2524
Manufacturer: RF Micro Devices
File Size: 1.45 MB
Datasheet: RFSA2524_RFMicroDevices.pdf
Description: SERIAL CONTROLLED DIGITAL STEP ATTENUATOR

Features

* GND VDD GND RF1 GND GND NC 19 18 1 GND GND GND RF2 GND GND Frequency Range 50MHz to 4000MHz 5-Bits, 31dB Range, 1dB Step High Linearity, IIP3 >48dBm 3V and 5V Logic Compatible Serial-to-Parallel Controller Serial Programming Interface Power-up Programming Modes On-chip ESD Protection Clas

Applications

* Transceiver RF and IF Applications Cellular, PCS, GSM, UMTS, LTE, WiMax/WiFi Wireless Data, Satellite Terminals Test Equipment
* Ordering Information RFSA2524SR RFSA2524SQ RFSA2524TR7 RFSA2524TR13 RFSA2524PCK-410 7” reel with 100 pieces Sample bag with 25 pieces 7” reel wi
