RFCM3316 POWER DOUBLER MODULE

RFCM3316 Description

RFCM3316 45-1218MHZ GAAS/GAN POWER DOUBLER MODULE The RFCM3316 is a Power Doubler amplifier SMD Module.The part employs GaAs pHEMT die and GaN HEMT .

RFCM3316 Features

* Excellent Linearity
* Superior Return Loss Performance
* Extremely Low Distortion
* Optimal Reliability
* Low Noise
* Unconditionally Stable Under all Terminations
* Extremely High Output Capability
* 22.5dB Min. Gain at 1218MHz
* 450mA Max. at 24VDC
* Tempe

RFCM3316 Applications

* 45MHz to 1218MHz CATV Amplifier Systems Functional Block Diagram Ordering Information RFCM3316SB RFCM3316SQ RFCM3316SR RFCM3316TR7 RFCM3316TR13 RFCM3316PCBA-410 Sample bag with 5 pieces Sample bag with 25 pieces 7” Reel with 100 pieces 7” Reel with 500 pieces 13” Reel with 1000 pieces Fully

📥 Download Datasheet

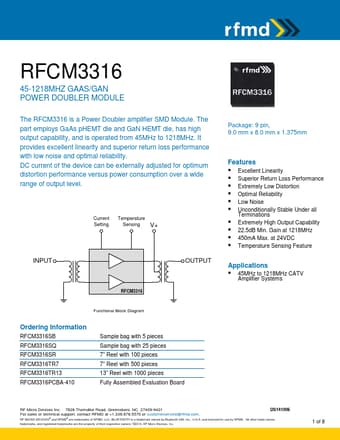

Preview of RFCM3316 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFCM3316
Manufacturer
RF Micro Devices
File Size
241.74 KB
Datasheet
RFCM3316-RFMicroDevices.pdf
Description
POWER DOUBLER MODULE
