RF2312 - LINEAR GENERAL PURPOSE AMPLIFIER

RF Micro Devices

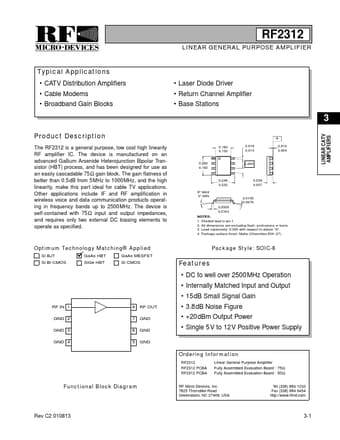

The RF2312 by RF Micro Devices is a LINEAR GENERAL PURPOSE AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

RF2312 LINEAR GENERAL PURPOSE AMPLIFIER by RF Micro Devices - Datasheet Preview — Official preview page of the **RF2312** LINEAR GENERAL PURPOSE AMPLIFIER datasheet (RF Micro Devices).

Datasheet Details

Part number	RF2312
Manufacturer	RF Micro Devices
File Size	274.52 KB
Description	LINEAR GENERAL PURPOSE AMPLIFIER
Datasheet	RF2312_RFMicroDevices.pdf
Additional preview pages of the RF2312 datasheet.

RF2312 Product details

Description

RF2312 Absolute Maximum Ratings Parameter Device Current Input RF Power Output Load VSWR Ambient Operating Temperature Storage Temperature Maximum Junction Temperature Rating 125 +18 20:1 -40 to +85 -40 to +150 150 Unit mA dBm °C °C °C Caution! ESD sensitive device.RF Micro Devices believes the furnished information is correct and accurate at the time of this printing.However, RF Micro Devices reserves the right to make changes to its products without notice.RF Micro Devices does not assum

Features

DC to well over 2500MHz Operation.
Internally Matched Input and Output.
15dB Small Signal Gain RF IN 1 GND 2 GND 3 GND 4 8 7 6 5 RF OUT GND GND GND.
3.8dB Noise Figure.
+20dBm Output Power.
Single 5V to 12V Positive Power Supply Ordering Information RF2312 RF2312 PCBA RF2312 PCBA Linear General Purpose Amplifier Fully Assembled Evaluation Board - 75 Ω Fully Assembled Evaluation Board - 50 Ω Tel (336) 664 1233 Fax (336) 664 0454 http://w.
