NBB-400 - CASCADABLE BROADBAND GaAs MMIC AMPLIFIER

General Description

The NBB-400 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs.

This 50Ω gain block is based on a reliable HBT proprietary MMIC design, providing unsurpassed performance for smallsignal applications.

Key Features

  • Reliable, Low-Cost HBT Design.
  • 15.5dB Gain, +15.0dBm P1dB @ 2 GHz.
  • High P1dB of +14.6 dBm @ 6.0 GHz.
  • Single Power Supply Operation.
  • 50Ω I/O Matched for High Freq. Use.

📥 Download Datasheet

Datasheet Details

Part number NBB-400
Manufacturer RF Micro Devices
File Size 239.81 KB
Description CASCADABLE BROADBAND GaAs MMIC AMPLIFIER
Datasheet download datasheet NBB-400 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by RF Micro Devices

Part Number Description
NBB-402 CASCADABLE BROADBAND GaAs MMIC AMPLIFIER DC TO 8GHz
NBB-300 CASCADABLE BROADBAND GaAs MMIC AMPLIFIER
NBB-302 CASCADABLE BROADBAND GaAs MMIC AMPLIFIER
NBB-310 CASCADABLE BROADBAND GaAs MMIC AMPLIFIER
NBB-312 Cascadable Broadband GaAs MMIC Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

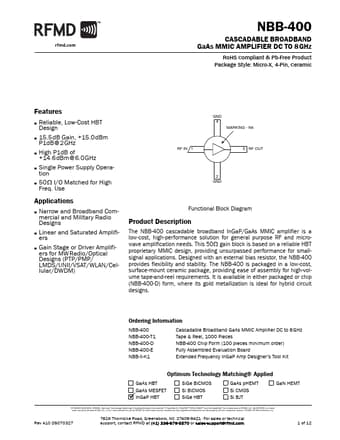

NBB-400 CASCADABLE BROADBAND GaAs MMIC AMPLIFIER DC TO 8GHz RoHS Compliant & Pb-Free Product Package Style: Micro-X, 4-Pin, Ceramic Features „ Reliable, Low-Cost HBT Design „ 15.5dB Gain, +15.0dBm P1dB @ 2 GHz „ High P1dB of +14.6 dBm @ 6.0 GHz „ Single Power Supply Operation „ 50Ω I/O Matched for High Freq. Use Applications „ Narrow and Broadband Commercial and Military Radio Designs „ Linear and Saturated Amplifiers „ Gain Stage or Driver Amplifiers for MWRadio/Optical Designs (PTP/PMP/ LMDS/UNII/VSAT/WLAN/Cellular/DWDM) RF IN 1 GND 4 MARKING - N4 3 RF OUT 2 GND Functional Block Diagram Product Description The NBB-400 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs.
