B1224S-2W - DC/DC CONVERTER

Download the B1224S-2W datasheet PDF. This datasheet also covers the B1205S-2W variant, as both devices belong to the same dc/dc converter family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • RoHS compliant Efficiency up to 83% 1kVDC Isolation Single output Short circuit protection( Suffix R2 only SIP,optional) Industry standard requir3ed Wide temperature performance at full 2 Watt load,-40 to 85 Model Selection Guide Order Code B0505S/D-2W(R2) B0509S/D-2W(R2) B0512S/D-2W(R2) B0515S/D-2W(R2) B0524S/D-2W(R2) B1205S/D-2W(R2) B1209S/D-2W(R2) B1212S/D-2W(R2) B1215S/D-2W(R2) B1224S/D-2W(R2) B2405S/D-2W(R2) B2409S/D-2W(R2) B2412S/D-2W(R2) B2415S/D-2W(R2) B2424S/D-2W(R2) Nominal 5 12 24.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B1205S-2W-REICU.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B1224S-2W
Manufacturer REICU
File Size 340.11 KB
Description DC/DC CONVERTER
Datasheet download datasheet B1224S-2W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B1224S-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER MORNSUN
B1224S-2WR2 DC/DC Converter MORNSUN
B1224S-1WR3 DC/DC Converter MORNSUN
B1224 PNP/NPN Epitaxial Planar Silicon Darlington Transistors Sanyo
B1224M-2WR3 DC/DC Power Module K-CUT

Other Datasheets by REICU

Part Number Description
B1224S-1W DC/DC CONVERTER
B1224S-W5 DC/DC CONVERTER
B1224D-1W DC/DC CONVERTER
B1224D-2W DC/DC CONVERTER
B1224D-W5 DC/DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

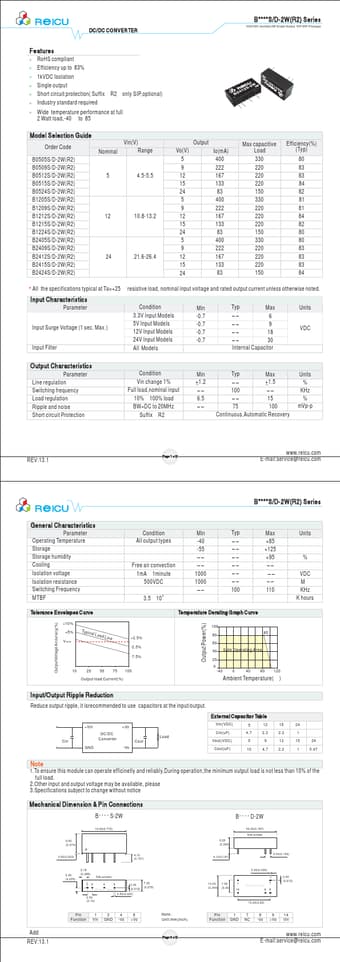

ReICU DC/DC CONVERTER B****S/D-2W(R2) Series 1000VDC Isolated 2W Single Output SIP/DIP-Package Features RoHS compliant Efficiency up to 83% 1kVDC Isolation Single output Short circuit protection( Suffix R2 only SIP,optional) Industry standard requir3ed Wide temperature performance at full 2 Watt load,-40 to 85 Model Selection Guide Order Code B0505S/D-2W(R2) B0509S/D-2W(R2) B0512S/D-2W(R2) B0515S/D-2W(R2) B0524S/D-2W(R2) B1205S/D-2W(R2) B1209S/D-2W(R2) B1212S/D-2W(R2) B1215S/D-2W(R2) B1224S/D-2W(R2) B2405S/D-2W(R2) B2409S/D-2W(R2) B2412S/D-2W(R2) B2415S/D-2W(R2) B2424S/D-2W(R2) Nominal 5 12 24 Vin(V) Range 4.5-5.5 10.8-13.2 21.6-26.
