AD30-S15 - AC / DC CONVERTER

Download the AD30-S15 datasheet PDF. This datasheet also covers the AD30-S05 variant, as both devices belong to the same ac / dc converter family and are provided as variant models within a single manufacturer datasheet.

Features

  • Efficiency up to 84% 3000VAC Isolation Single/Double output short circuit protection Universal Input :85 ~ 264VAC,50/60Hz Wide temperature -25 to 70 Power modules for PCB Mounting mesign Plastic case Model Selection Guide Order Code AD30-S05 AD30-S09 AD30-S12 AD30-S15 AD30-S24 AD30-D05 AD30-D12 AD30-D15 AD30-D05-05 AD30-D05-12 AD30-D05-24 Input AC(V) DC(V) 165-264 200-370 AD30 Series 30W Output Vo(V) Io(mA) 5 6000 9 3333 12 2500 15 2000 24 1250 +5 +3000 +12 +1250 +15 +1000 5/5.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AD30-S05-REICU.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AD30-S15
Manufacturer REICU
File Size 549.40 KB
Description AC / DC CONVERTER
Datasheet download datasheet AD30-S15 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AD30 ARC Discharge Valve FERRANTI
AD30D200 200V 30A Ultra Low VF Schottky AP Semiconductor
AD310 MRC Decoder ETC
AD310-25 GaAs IC 4-Bit Digital Attenuator Skyworks Solutions
AD321A 1MHZ CMOS Rail-to-Rail IO Opamp ADV

Other Datasheets by REICU

Part Number Description
AD30-S12 AC / DC CONVERTER
AD30-S05 AC / DC CONVERTER
AD30-S09 AC / DC CONVERTER
AD30-S24 AC / DC CONVERTER
AD30-D05 AC / DC CONVERTER

Full PDF Text Transcription

Click to expand full text

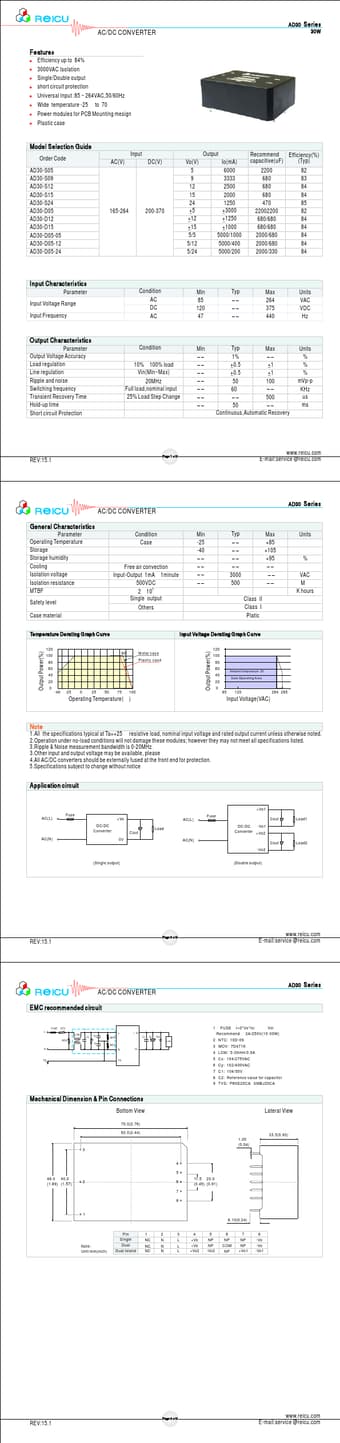

ReICU AC/DC CONVERTER Features Efficiency up to 84% 3000VAC Isolation Single/Double output short circuit protection Universal Input :85 ~ 264VAC,50/60Hz Wide temperature -25 to 70 Power modules for PCB Mounting mesign Plastic case Model Selection Guide Order Code AD30-S05 AD30-S09 AD30-S12 AD30-S15 AD30-S24 AD30-D05 AD30-D12 AD30-D15 AD30-D05-05 AD30-D05-12 AD30-D05-24 Input AC(V) DC(V) 165-264 200-370 AD30 Series 30W Output Vo(V) Io(mA) 5 6000 9 3333 12 2500 15 2000 24 1250 +5 +3000 +12 +1250 +15 +1000 5/5 5000/1000 5/12 5000/400 5/24 5000/200 Recommend Efficiency(%) capacitive(uF) (Typ) 2200 680 680 680 470 22002200 680/680 680/680 2000/680 2000/680 2000/330 82 83 84 84 85 82 84 84 84 84 84 Input Characteristics Parameter Input Voltage Range Input Frequency Ou
