A0515S-1W - DC/DC CONVERTER

Download the A0515S-1W datasheet PDF. This datasheet also covers the A0505S-1W variant, as both devices belong to the same dc/dc converter family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • RoHS compliant Efficiency up to 78% 1.6kVDC Isolation Double output Short circuit protection( Suffix“R2”only SIP,optional) Industry standard requir3ed Wide temperature performance at full 1 Watt load,-40℃ to 85℃ Model Selection Guide Order Code A0505S/D-1W(R2) A0509S/D-1W(R2) A0512S/D-1W(R2) A0515S/D-1W(R2) A0524S/D-1W(R2) A1205S/D-1W(R2) A1209S/D-1W(R2) A1212S/D-1W(R2) A1215S/D-1W(R2) A1224S/D-1W(R2) A2405S/D-1W(R2) A2409S/D-1W(R2) A2412S/D-1W(R2) A2415S/D-1W(R2) A2424S/D-1W(R2) Nominal 5 12.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (A0505S-1W-REICU.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number A0515S-1W
Manufacturer REICU
File Size 2.49 MB
Description DC/DC CONVERTER
Datasheet download datasheet A0515S-1W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A0515S-1W DUAL/SINGLE OUTPUT DC-DC CONVERTER MORNSUN
A0515S-1W DC-DC Power Module K-CUT
A0515S-1WR3 DC/DC Converter MORNSUN
A0515S-2W DUAL/SINGLE OUTPUT DC-DC CONVERTER MORNSUN
A0515S-2WR2 DC/DC Converter MORNSUN

Other Datasheets by REICU

Part Number Description
A0515S-2W DC/DC CONVERTER
A0515D-1W DC/DC CONVERTER
A0515D-2W DC/DC CONVERTER
A0512D-1W DC/DC CONVERTER
A0512D-2W DC/DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

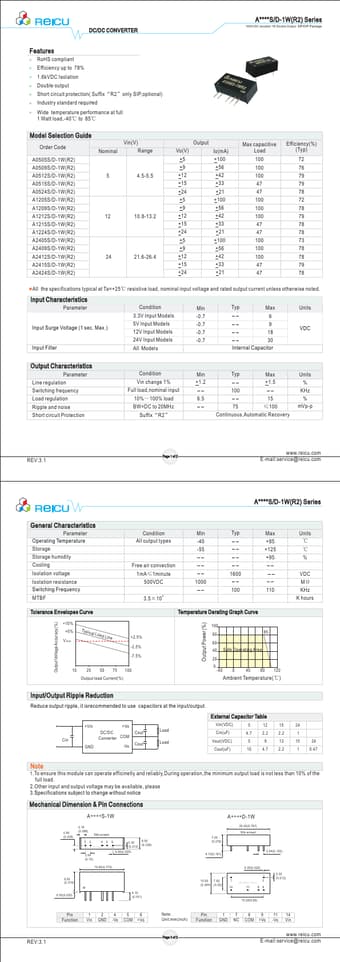

DC/DC CONVERTER A****S/D-1W(R2) Series 1600VDC Isolated 1W Double Output SIP/DIP-Package Features RoHS compliant Efficiency up to 78% 1.6kVDC Isolation Double output Short circuit protection( Suffix“R2”only SIP,optional) Industry standard requir3ed Wide temperature performance at full 1 Watt load,-40℃ to 85℃ Model Selection Guide Order Code A0505S/D-1W(R2) A0509S/D-1W(R2) A0512S/D-1W(R2) A0515S/D-1W(R2) A0524S/D-1W(R2) A1205S/D-1W(R2) A1209S/D-1W(R2) A1212S/D-1W(R2) A1215S/D-1W(R2) A1224S/D-1W(R2) A2405S/D-1W(R2) A2409S/D-1W(R2) A2412S/D-1W(R2) A2415S/D-1W(R2) A2424S/D-1W(R2) Nominal 5 12 24 Vin(V) Range 4.5-5.5 10.8-13.2 21.6-26.
