HER305PG - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER

Download the HER305PG datasheet PDF. This datasheet also covers the HER301G variant, as both devices belong to the same high efficiency glass passivated rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass passivated junction.
  • Low power loss, high efficiency.
  • Low leakage.
  • Low forward voltage drop.
  • High current capability.
  • High speed switching.
  • High reliability.
  • High current surge.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HER301G-RECTRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HER305PG
Manufacturer RECTRON
File Size 30.38 KB
Description HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
Datasheet download datasheet HER305PG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HER305 3A High Efficiency Diodes Leshan Radio Company
HER305 HIGH EFFICIENCY RECTIFIER Rectron Semiconductor
HER305 3.0A HIGH EFFICIENCY RECTIFIER Diodes Incorporated
HER305 3.0 Amp High Efficient Rectifiers Micro Commercial Components
HER305 HIGH EFFICIENCY RECTIFIER GOOD-ARK Electronics

Other Datasheets by RECTRON

Part Number Description
HER305G HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
HER301G HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
HER302G HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
HER303G HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER
HER304G HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

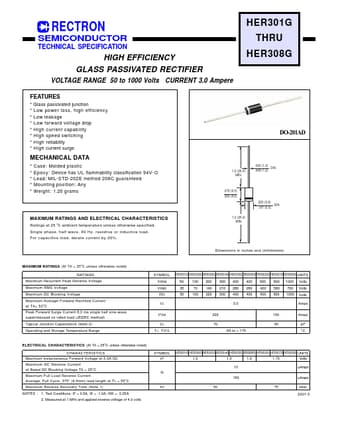

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Ampere HER301G THRU HER308G FEATURES * Glass passivated junction * Low power loss, high efficiency * Low leakage * Low forward voltage drop * High current capability * High speed switching * High reliability * High current surge MECHANICAL DATA * Case: Molded plastic * Epoxy: Device has UL flammability classification 94V-O * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 1.20 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. DO-201AD 1.0 (25.4) MIN. .
