D2601E, D2600M Thyristors / Rectifiers

RCA

Description

File No.839 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ OOCD3LJD Solid State Division Thyristors/Rectifiers.S3705M D2600M S3706E .

📥 Download Datasheet

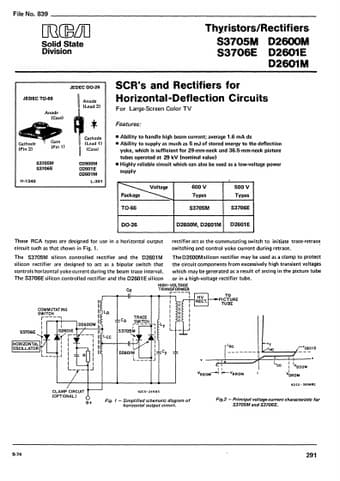

D2601E Datasheet Preview — This datasheet PDF includes multiple part numbers: D2601E, D2600M. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: D2601E, D2600M
Manufacturer: RCA
File Size: 358.87 KB
Datasheet: D2600M-RCA.pdf
Description: Thyristors / Rectifiers
Note: This datasheet PDF includes multiple part numbers: D2601E, D2600M.
Please refer to the document for exact specifications by model.

Features

* Ability to handle high beam current; average 1.6 mA dc
* Ability to supply as much as 5 mJ of stored energy to the deflection yoke, which is sufficient for 29-mm-neck and 36.5-mm-neck picture tubes operated at 29 kV Inominal value)
* Highly reliable circuit which can
