40894 - Power Transistors

40894 Description

File No.548 Dl(]5LJ[J Solid State Division RF Power Transistors 40894 40896 40895 40897 JEDEC TO *72 H-1299 High - Frequency Silicon N-P-N Tra.

40894 Features

* High gain
* bandwidth products: fT = 1200 MHz typo for tuner types = 800 MHz typo for if-amplifier types
* Very low collector
* to
* base feedback capacitance: Ccb = 0.7 pF typo for 40894.40895
* Low noise figure: 3 dB typo at 200 MHz for rf amplifier type RCA-40894

40894 Applications

* requiring minimum feedback capacitance. shielding of the device. or both.
* High power gain

📥 Download Datasheet

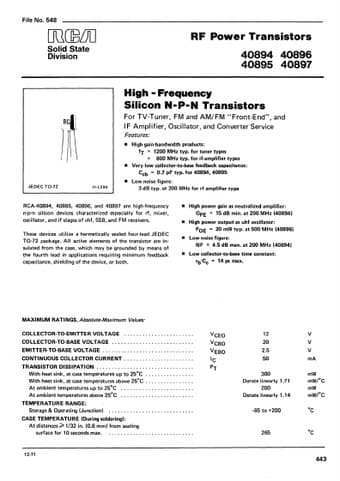

Preview of 40894 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
40894
Manufacturer
RCA
File Size
241.03 KB
Datasheet
40894-RCA.pdf
Description
Power Transistors
