40544, 40539 - Power Transistor

Datasheet Details

Part number	40544, 40539
Manufacturer	RCA
File Size	173.92 KB
Description	Power Transistor
Datasheet	40539-RCA.pdf
Note	This datasheet PDF includes multiple part numbers: 40544, 40539. Please refer to the document for exact specifications by model.

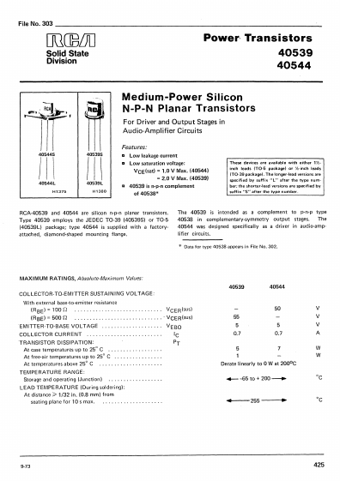

Low leakage current D Low saturation voltage: VCE(sat) = 1.0 V Max. (40544) = 2.0 V Max. (40539) a 40539 is n.
p.
n complement of 40538.
These devices are available with either 1%inch leads (TO-5 package) or !Ii-inch leads ITO-39 package). The longer-lead versions are specified by suffix "L" after the type num.
ber; the shorter-lead versions are specified by suffix. "S" after the type number. RCA-40539 and 40544 are silicon n-p-n planar transistors. Type 40539 employs.
