QN8006L, QN8006 High Performance Digital FM Transceiver

QN8006L Description

Product Brief ________ General .
________ The QN8006 is a high performance, low power, fullfeatured single-chip stereo FM transceiver designed for cell phones, GPS personal navigation.

QN8006L Features

* __________
* Worldwide FM Band Receive and Transmit
* 76 MHz to 108 MHz full band tuning in 50/100/200 kHz step sizes
* 50/75μs pre-emphasis and de-emphasis
* Ease of Integration
* Small footprint, 4 x 4 x 0.85mm QFN24
* Only 2 external passive compone

QN8006L Applications

* The QN8006 provides both digital and analog audio interfaces. 2-wire and 3-wire digital control interfaces provide simple access to programmable functions. Advanced digital architecture enables superior receiver sensitivity, crystal clear audio, unsurpassed spectral purity, ultra-low harmonic and s

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: QN8006L, QN8006. Please refer to the document for exact specifications by model.

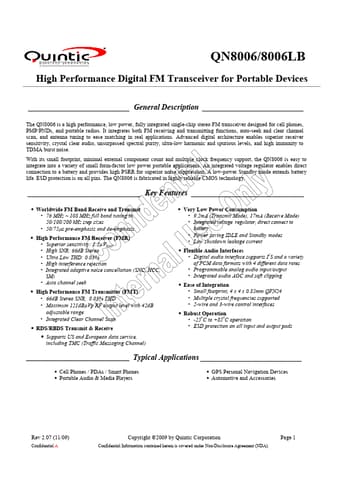

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QN8006L, QN8006
Manufacturer
Quintic
File Size
1.40 MB
Datasheet
QN8006_Quintic.pdf
Description
High Performance Digital FM Transceiver
Note
This datasheet PDF includes multiple part numbers: QN8006L, QN8006.
Please refer to the document for exact specifications by model.
