CMD320C3 - Ultra Low Noise Amplifier

📥 Download Datasheet

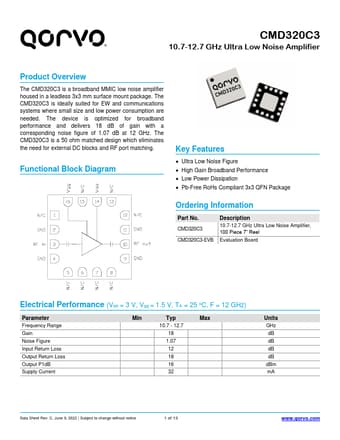

Preview of CMD320C3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number CMD320C3
Manufacturer Qorvo
File Size 347.08 KB
Description Ultra Low Noise Amplifier
Datasheet download datasheet CMD320C3-Qorvo.pdf

CMD320C3 Product details

Description

10.7-12.7 GHz Ultra Low Noise Amplifier, 100 Piece 7” Reel Evaluation Board Electrical Performance (Vdd = 3 V, Vgg = 1.5 V, TA = 25 oC, F = 12 GHz) ) )Parameter Frequency Range Min Typ Max 10.7 - 12.7 )Gain 18 )Noise Figure 1.07 )Input Return Loss 12 )Output Return Loss 18 Output P1dB 16 )Supply Current 32 Units GHz dB dB dB dB dBm mA Data Sheet Rev.C, June 9, 2022 | Subject to change without notice 1 of 13 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Dra

Features
