CMD271P3 - Low Noise Amplifier

Qorvo

📥 Download Datasheet

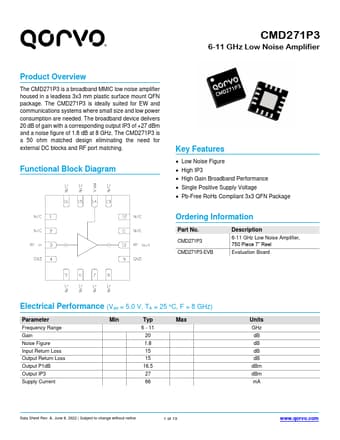

CMD271P3 Datasheet Preview — Preview of CMD271P3 PDF

Datasheet Details

Part number	CMD271P3
Manufacturer	Qorvo
File Size	328.50 KB
Description	Low Noise Amplifier
Datasheet	CMD271P3-Qorvo.pdf

CMD271P3 Product details

Description

6-11 GHz Low Noise Amplifier, 750 Piece 7” Reel Evaluation Board Electrical Performance (Vdd = 5.0 V, TA = 25 oC, F = 8 GHz) Parameter Frequency Range Gain Noise Figure Input Return Loss Output Return Loss Output P1dB Output IP3 Supply Current Min Typ Max 6 - 11 20 1.8 15 15 16.5 27 66 Data Sheet Rev.A, June 8, 2022 | Subject to change without notice 1 of 13 Units GHz dB dB dB dB dBm dBm mA www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Drain Voltage, Vdd 5.5 V

Features

Low Noise Figure.
High IP3.
High Gain Broadband Performance.
Single Positive Supply Voltage.
Pb-Free RoHs Compliant 3x3 QFN Package Ordering Information Part No. CMD271P3 CMD271P3-EVB.
